KRTM 20M/V-20-0004-S12

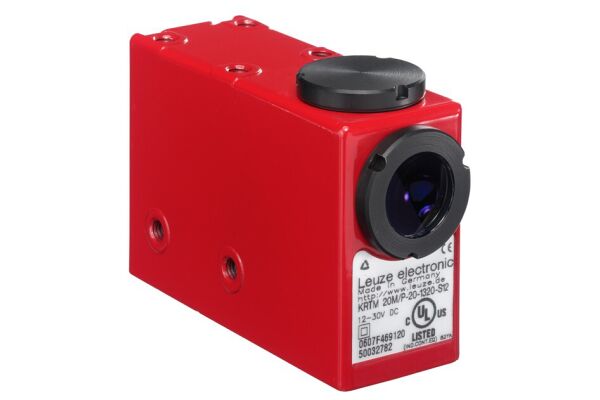

This is a contrast sensor featuring autocollimation, a crop mark system, and a time function. It is equipped with an RGB LED light source and offers both analog and digital outputs. The sensor is housed in a metal casing and is controlled via a membrane keyboard or service interface.

SKU

2110-50041007
Manufacturer code

50041007
Number of semiconductor outputs with signalling function

1
Number of contact energized outputs with signalling function

1
Type of electric connection

Connector M12
Type of switching output

PNP
Type of switch function

Other
With blanking function

false
Operation agent-safety class

Safety class 3
Rated control supply voltage DC

12 - 30 V
Voltage type

DC
DC
DC
DC
Width sensor

30 mm
Height of sensor

80 mm
Length of sensor

53 mm
Setting procedure

Manual adjustment
Construction type housing

Cuboid
Laser protection class

Other
No-load current

0 mA
Type of light

Multi-coloured LED
With fibre optics connection

false
Switching frequency

16000 Hz
Degree of protection (IP)

IP67
Ambient temperature

-25 - 60 °C
With exchange lens

false
Material of optical surface

Other
Housing material

Other
Metal
With time function

false
Special version

Autocollimation
Time function
Crop mark system
Supplyoltage (V)

12 ... 30
Switching frequency (Hz)

16000
Operational controls

Membrane keyboard
Via service interface
Analog outputs

1
Analog output

Current
Operating range (m)

0.020

Manufacturer Leuze

Product attachments

DSw_KRT20_fmt_08e_en (LINK)
