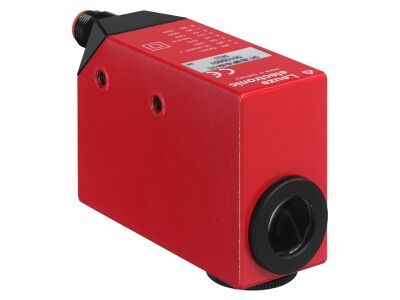

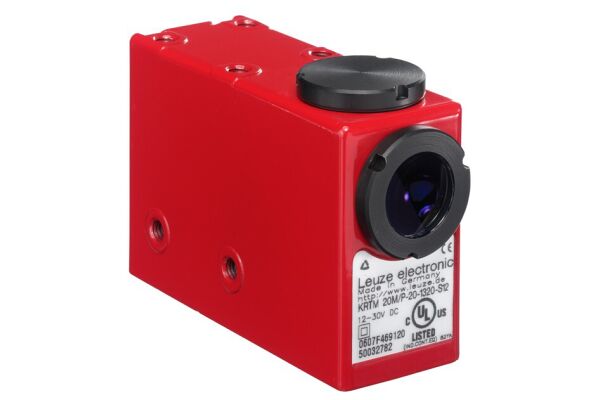

KRTM 20M/N-20-3320-S12 Contrast sensor

KRTM 20M/N-20-3320-S12
This contrast sensor features autocollimation, synchronization input, and time functions, with an operating range of 20 mm ± 2 mm. It utilizes an RGB LED light source and supports a supply voltage of 12 to 30 V DC. The sensor includes one digital switching output, a transistor NPN that is light/dark switchable, and a switching frequency of 50,000 Hz. It connects via an M12, 5-pin connector and is housed in a metal casing with membrane keyboard operational controls.
  • SKU
    2110-50114201
  • Manufacturer code
    50114201
  • Number of semiconductor outputs with signalling function
    1
  • Type of electric connection
    Connector M12
  • Type of switching output
    NPN
  • Type of switch function
    Other
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 3
  • Rated control supply voltage DC
    12 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Width sensor
    30 mm
  • Height of sensor
    80 mm
  • Length of sensor
    53 mm
  • Setting procedure
    Manual adjustment
  • Construction type housing
    Cuboid
  • Laser protection class
    Other
  • No-load current
    0 mA
  • Type of light
    Multi-coloured LED
  • With fibre optics connection
    false
  • Switching frequency
    50000 Hz
  • Degree of protection (IP)
    IP67
  • Ambient temperature
    -25 - 60 °C
  • With exchange lens
    false
  • Material of optical surface
    Other
  • Housing material
    Other
    Metal
  • With time function
    false
  • Special version
    Autocollimation
    Time function
    Synchronization input
  • Supplyoltage (V)
    12 ... 30
  • Switching frequency (Hz)
    50000
  • Operational controls
    Membrane keyboard
  • Operating range (m)
    0.020
  • Manufacturer Leuze

Product attachments

DS_KRTM20Mhighres_en_50113452_01 (LINK)
