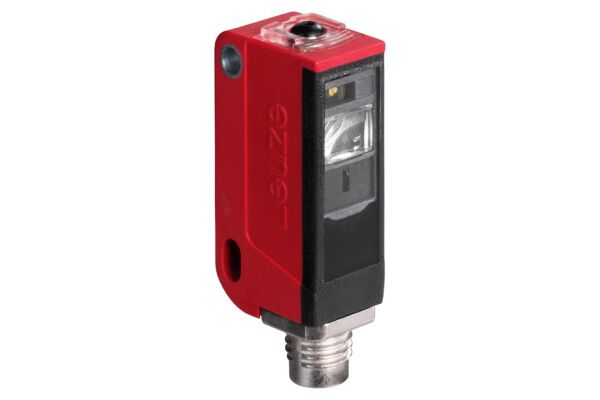

KRTM 3B/6.2121-S8

This contrast sensor features a teach input and time function, with an operating range of 14.5 mm ± 2 mm. It uses an RGB LED light source and supports a supply voltage of 10 to 30 V DC. The sensor includes one digital switching output and a switching frequency of 10,000 Hz. It connects via an M8, 4-pin connector and is housed in a plastic casing with dimensions of 11 mm x 32 mm x 17 mm. A teach button is available for operational control.

SKU

2110-50118393
Manufacturer code

50118393
Number of semiconductor outputs with signalling function

1
Type of electric connection

Connector M8
Type of switching output

PNP/NPN
Type of switch function

Anticoincidence
With blanking function

false
Operation agent-safety class

Safety class 3
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
Width sensor

11 mm
Height of sensor

32 mm
Length of sensor

17 mm
Setting procedure

Teach-In
Construction type housing

Cuboid
Laser protection class

Other
No-load current

0 mA
Type of light

Multi-coloured LED
With fibre optics connection

false
Switching frequency

10000 Hz
Degree of protection (IP)

IP67
Ambient temperature

-30 - 55 °C
With exchange lens

false
Material of optical surface

Glass
Housing material

Plastic
Plastic
Plastic
Plastic
With time function

false
Special version

Teach input
Time function
Supplyoltage (V)

10 ... 30
Switching frequency (Hz)

10000
Operational controls

Teach button
Operating range (m)

0.0145

Manufacturer Leuze

Product attachments

DS_KRTM3B_en_50110625 (LINK)
