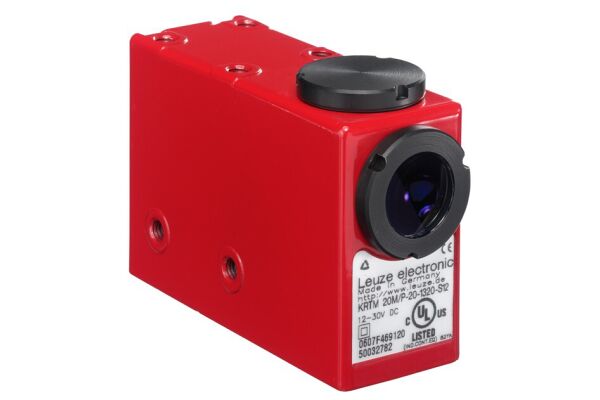

This contrast sensor features autocollimation, synchronization input, and time function capabilities. It operates within a range of 20 mm ± 2 mm with an RGB LED light source and offers a transistor PNP switching output. The sensor supports light/dark switching and maintains a switching frequency of 50,000 Hz. It connects via an M12, 5-pin connector and is housed in a metal casing with a membrane keyboard for operational controls.

SKU

2110-50114202
Manufacturer code

50114202
Number of semiconductor outputs with signalling function

1
Type of electric connection

Connector M12
Type of switching output

PNP
Type of switch function

Other
With blanking function

false
Operation agent-safety class

Safety class 3
Rated control supply voltage DC

12 - 30 V
Voltage type

DC
DC
DC
DC
Width sensor

30 mm
Height of sensor

80 mm
Length of sensor

53 mm
Setting procedure

Manual adjustment
Construction type housing

Cuboid
Laser protection class

Other
No-load current

0 mA
Type of light

Multi-coloured LED
With fibre optics connection

false
Switching frequency

50000 Hz
Degree of protection (IP)

IP67
Ambient temperature

-25 - 60 °C
With exchange lens

false
Material of optical surface

Other
Housing material

Other
Metal
With time function

false
Most suitable applications

Precise detection of contrast differences Industries requiring high-speed detection with synchronization
Special version

Autocollimation
Time function
Synchronization input
Supplyoltage (V)

12 ... 30
Switching frequency (Hz)

50000
Operational controls

Membrane keyboard
Operating range (m)

0.020
