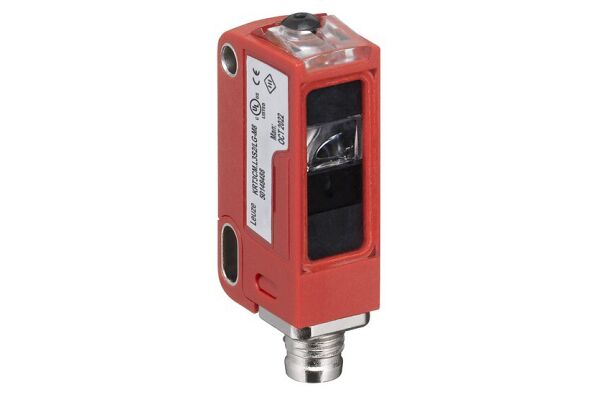

KRT3CL1.3S2/4T-M8

This contrast sensor features a time function and teach input. It operates with a red laser light source and provides a single digital switching output. The sensor is housed in a durable plastic casing and includes a teach button for easy configuration.

SKU

2110-50148502
Manufacturer code

50148502
Number of semiconductor outputs with signalling function

1
Type of electric connection

Connector M8
Type of switching output

PNP
Type of switch function

Other
With blanking function

false
Operation agent-safety class

Safety class 3
Rated control supply voltage DC

12 - 30 V
Voltage type

DC
DC
DC
DC
Width sensor

11.4 mm
Height of sensor

34.2 mm
Length of sensor

18.3 mm
Setting procedure

Teach-In
Construction type housing

Cuboid
Laser protection class

Class 1
No-load current

0 mA
Type of light

Laser diode, red light
With fibre optics connection

false
Switching frequency

4000 Hz
Degree of protection (IP)

Other
Ambient temperature

-40 - 55 °C
With exchange lens

false
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
With time function

false
Max. output current

100 A
Special version

Teach input
Time function
Supplyoltage (V)

12 ... 30
Switching frequency (Hz)

4000
Operational controls

Teach button
Operating range (m)

0.06

Manufacturer Leuze

Product attachments

DS_KRT3CL1-3S2-4T-M8_eng_50148502 (LINK)
