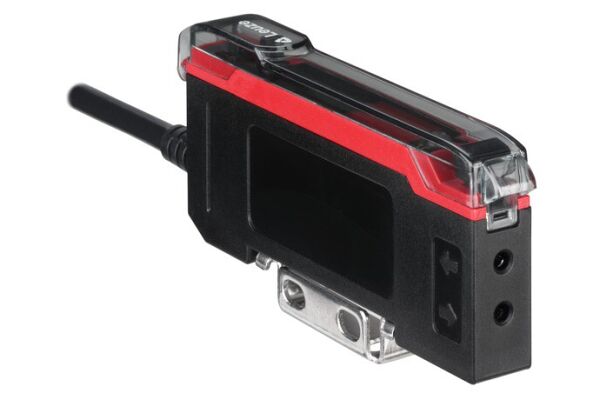

LV463I.XR7/L4-M8 Fiber optic amplifier

LV463I.XR7/L4-M8
Fiber optic amplifier with a large operating range and time function, featuring LED light source and dual digital switching outputs.
  • SKU
    50147631
  • Manufacturer code
    50147631
  • Switching frequency
    21 Hz
  • Type of electric connection
    Connector M8
  • Degree of protection (IP)
    Other
  • Number of contact energized outputs with signalling function
    0
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • Type of switching output
    PNP/NPN
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 0
  • Rated control supply voltage DC
    10 - 24 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Width amplifier
    10 mm
  • Height amplifier
    31.5 mm
  • Length amplifier
    72 mm
  • Indication
    LED
  • Setting procedure
    Manual adjustment
  • Construction type housing
    Cuboid
  • No-load current
    40 mA
  • Type of light
    Infrared light
  • Max. output current
    100 A
  • Ambient temperature
    -10 - 55 °C
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Material of cable sheath
    Other
  • Material fibre optics core
    Other
  • With time function
    false
  • Number of semiconductor outputs with signalling function
    2
  • Type of switch function
    Programmable/configurable
  • Switching frequency (Hz)
    21
  • Supplyoltage (V)
    10 ... 24
  • Operational controls
    Slide switch
    Rocker pressure switch
  • Display
    LED
  • Special version
    Time function
    Large operating range
  • Interface
    IO-Link

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Leuze

Product attachments

DS_LV463XR1SWO_en_50135394 (LINK)
