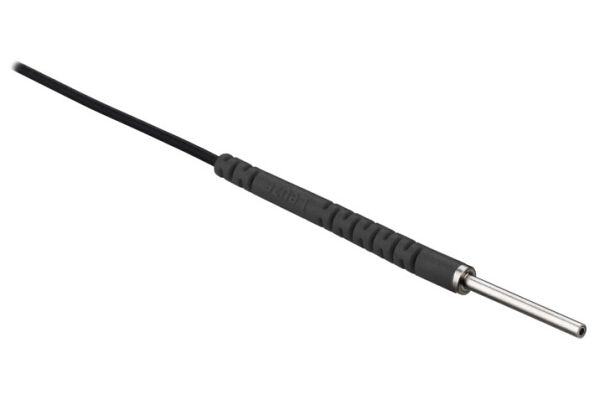

KFX-ETC7-120 Plastic fiber optics type diffuse reflective

KFX-ETC7-120
Plastic fiber optics with a diffuse reflective design, featuring a coaxial fiber configuration for precise applications.
  • SKU
    2110-50117763
  • Manufacturer code
    50117763
  • Number of contact energized outputs with signalling function
    0
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 0
  • Housing material
    Other
  • Material of cable sheath
    Other
  • Material fibre optics core
    Other
  • With time function
    false
  • Construction type housing
    Cylindrical
  • Ambient temperature, operation (°C)
    -55 ... 70
  • Light beam exit
    Front
  • Outer diameter (mm)
    1.25
  • Fiber core
    Multiple fiber core, Coaxial fiber configuration
  • Fiber length (MM)
    2000
  • Operating principle
    Diffuse reflection principle
  • Manufacturer Leuze

Product attachments

DS_KFX-ETC7-120_eng_50117763 (LINK)
