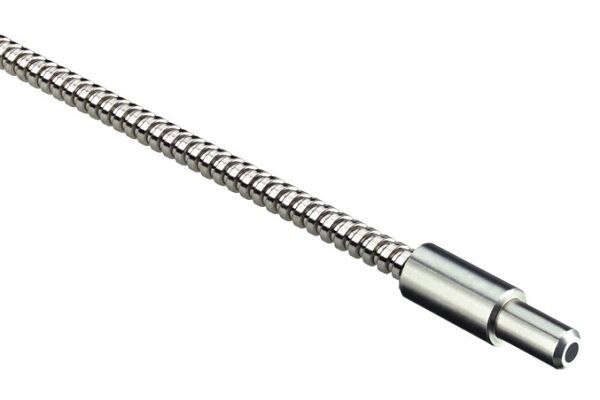

This glass fiber optics type is designed for diffuse reflective applications. It is heat resistant and features a cylindrical design with an on-face light beam exit.

SKU

2110-50126487
Manufacturer code

50126487
Number of contact energized outputs with signalling function

0
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With blanking function

false
Operation agent-safety class

Safety class 0
Housing material

Other
Material of cable sheath

Other
Material fibre optics core

Other
With time function

false
Most suitable applications

Diffuse reflection applications requiring high heat resistance
Special version

Heat resistant
Construction type housing

Cylindrical
Ambient temperature, operation (°C)

-30 ... 160
Light beam exit

On face
Outer diameter (mm)

6
Fiber core

50% / 50% fiber configuration, Multiple fiber core
Fiber length (MM)

3000
Operating principle

Diffuse reflection principle
