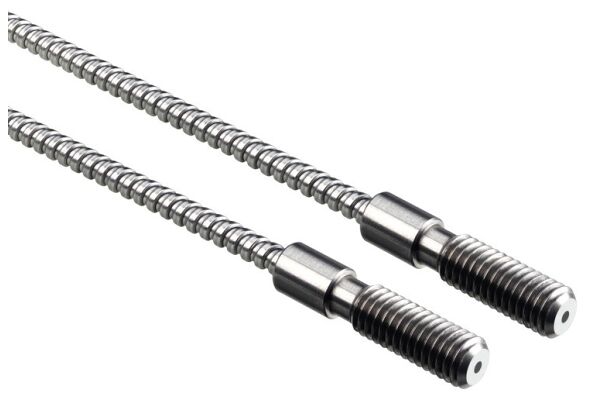

Heat-resistant glass fiber optics with a cylindrical design for throughbeam operation, featuring a front light beam exit and multiple fiber cores with mixed configurations.

SKU

2110-50127341
Manufacturer code

50127341
Number of contact energized outputs with signalling function

0
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With blanking function

false
Operation agent-safety class

Safety class 0
Housing material

Other
Material of cable sheath

Other
Material fibre optics core

Other
With time function

false
Most suitable applications

Throughbeam optical sensing in high-temperature environments.
Special version

Heat resistant
Design

Cylindrical
Ambient temperature, operation (°C)

-30 ... 300
Light beam exit

Front
Outer diameter (mm)

4.5
Fiber core

Multiple fiber core, Mixed fiber configuration
Fiber length (MM)

3000
Operating principle

Throughbeam principle

Manufacturer Leuze
