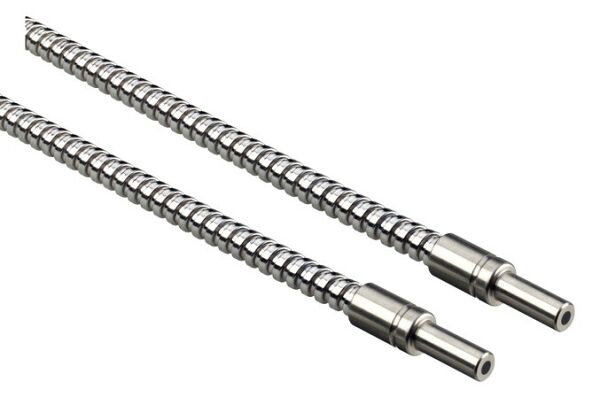

GF-LB-SS-450-IQ Glass fiber optics for throughbeam operation

GF-LB-SS-450-IQ
Heat-resistant glass fiber optics designed for throughbeam operation with a cylindrical design and stainless steel sheathing.
  • SKU
    2110-50126466
  • Manufacturer code
    50126466
  • Number of contact energized outputs with signalling function
    0
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 0
  • Housing material
    Other
  • Material of cable sheath
    Other
  • Material fibre optics core
    Other
  • With time function
    false
  • Special version
    Heat resistant
  • Design
    Cylindrical
  • Ambient temperature, operation (°C)
    -30 ... 300
  • Light beam exit
    On face
  • Outer diameter (mm)
    4
  • Fiber core
    Multiple fiber core, Mixed fiber configuration
  • Fiber length (MM)
    5000
  • Operating principle
    Throughbeam principle
  • Manufacturer Leuze

Product attachments

DS_GF_en_50126563 (LINK)
