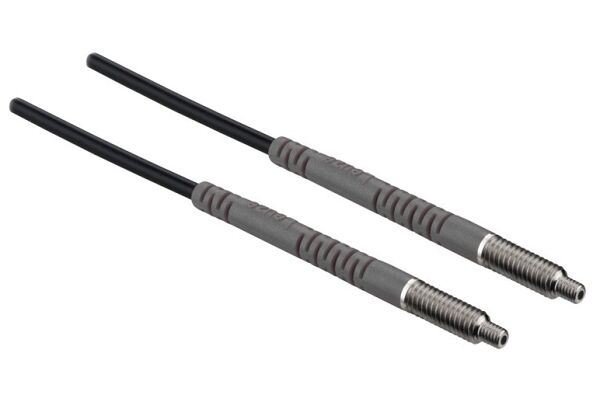

Plastic fiber optics designed for throughbeam operation, featuring heat resistance and front light beam exit.

SKU

2110-50117768
Manufacturer code

50117768
Number of contact energized outputs with signalling function

0
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With blanking function

false
Operation agent-safety class

Safety class 0
Housing material

Other
Material of cable sheath

Other
Material fibre optics core

Other
With time function

false
Most suitable applications

Ideal for environments requiring heat resistance and precise object detection.
Special version

Heat resistant
Design

Cylindrical
Ambient temperature, operation (°C)

-55 ... 105
Light beam exit

Front
Outer diameter (mm)

2.2
Fiber core

Single fiber core
Fiber length (MM)

2000
Operating principle

Throughbeam principle
