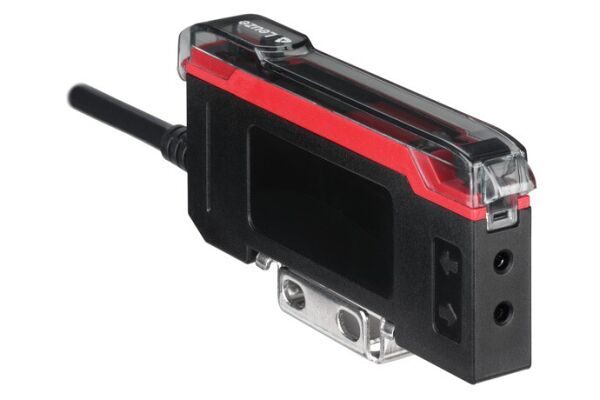

Fiber optic amplifier with a large operating range, featuring LED light source and versatile outputs.

SKU

2110-50134004
Manufacturer code

50134004
Switching frequency

21 Hz
Type of electric connection

Cable
Degree of protection (IP)

Other
Number of contact energized outputs with signalling function

0
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
Type of switching output

PNP
With blanking function

false
Operation agent-safety class

Safety class 0
Rated control supply voltage DC

12 - 24 V
Voltage type

DC
DC
DC
DC
Width amplifier

10 mm
Height amplifier

31.5 mm
Length amplifier

72 mm
Indication

LED
Setting procedure

Manual adjustment
Construction type housing

Cuboid
No-load current

40 mA
Type of light

Infrared light
Max. output current

100 A
Ambient temperature

-10 - 55 °C
Housing material

Plastic
Plastic
Plastic
Plastic
Material of cable sheath

Other
Material fibre optics core

Other
With time function

false
Number of semiconductor outputs with signalling function

1
Type of switch function

Programmable/configurable
Switching frequency (Hz)

21
Supplyoltage (V)

12 ... 24
Operational controls

Slide switch
Rocker pressure switch
Display

LED
Special version

Large operating range
Inputs/outputs selectable (pcs)

1
Analog outputs

1
Analog output

Current

Manufacturer Leuze
