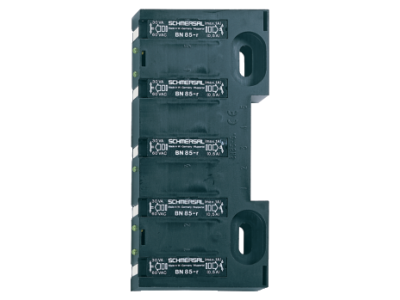

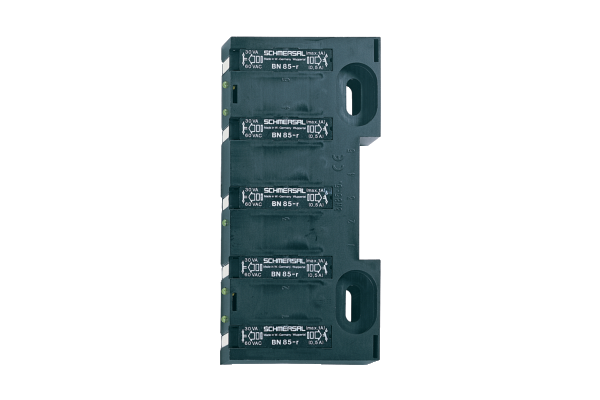

Enclosure with mounting slots
Actuation from front
Non-contact principle
5 reed contacts
Long life
LED switching conditions display
connector
Thermoplastic enclosure
Reed-contact to clip-in, on-location assembly

SKU

4030661050041
Manufacturer code

101110853
Current, Switching current, maximum

1 A
Type of execution, Actuating element

Magnet
Construction type housing

rectangular
Type of Execution, IP Protection class, General

IP30
Type of Execution, Mechanical life, minimum,

1000000000 Operations
Type of Execution, Switching output, Digital output, electric

Reed contacts
Height, Sensor

20 mm
Length, Sensor

140 mm
Width, Sensor

65 mm
Housing material

Glass-fibre, reinforced thermoplastic
Note, General

The opening and closing functions depend on the direction of
PIM maintenance status

Discharge "Online catalog"
Power, switching capacity, maximum

30 W
Type of switch function

bistable contact
Type of electric connection

Connector, 10-pole
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661050041
SAP, product group

Initial
SAP, gross weight

136.000 g
SAP, net weight

136.000 g
Temperature, Ambient temperature[generated product variant]

-10 ... +75 °C
Temperature, ambient temperature, maximum

75 °C
Temperature, ambient temperature, minimum

-10 °C
Web Type

Product range
Type of application, Actuating panel

front side
Type of execution, mounting

Enclosure with mounting slots
Notice, Switch distance Sn

The specified switching distances are applicable for the act
Recommendation, actuator

BP 7
Recommendation, Actuator, Lift switchgear

BP 7
Review, area, switch distance S_n

1 mm … 14 mm
Review, restistance to shock

60 g, on sine wave oscillation
Included in delivery, number and type, general

Actuator must be ordered separately.
Selection (Yes/No),

Yes
Selection (Yes/No), latching

Yes
Voltage, Switching voltage, VDC, maximum

60 VDC
Number, Snap-in contacts, maximum

5
Number, Snap-in contacts, minimum

1
Voltage, Switching voltage, VDC, minimum

12 VDC
Selection (Yes/No), Integral System Diagnostics, status

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
