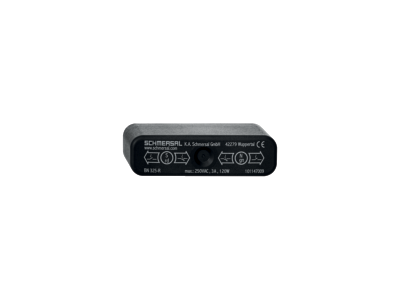

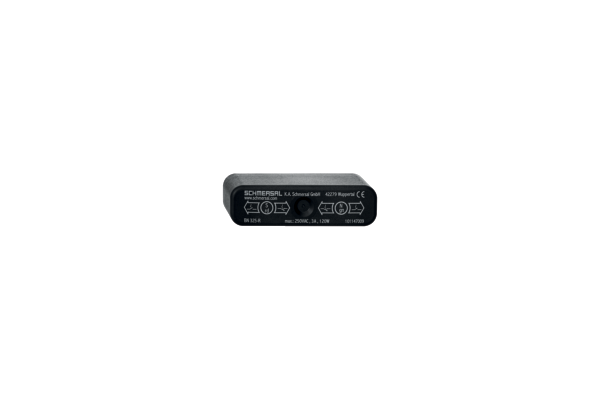

BN 325-RG-1279-2 2,5M Magnetic Reed switch

4030661545806

103011701

3 A

Magnet

rectangular

IP67

1000000000 Operations

Reed contacts

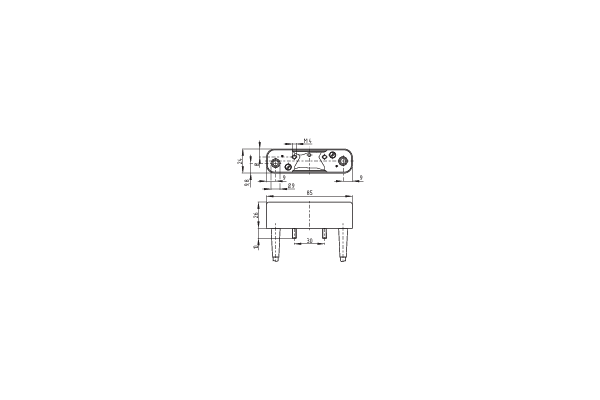

26 mm

24 mm

85 mm

Glass-fibre, reinforced thermoplastic

The opening and closing functions depend on the direction of

Discharge "Online catalog"

120 VA

bistable contact

Cable outlet right and 2 shielding plates with LED

Piece

4030661545806

Initial

165.000 g

165.000 g

-25 ... +70 °C

70 °C

-25 °C

0.6 ms

0.3 ms

250 VAC

Product range

front side

rear with 2 threaded bolts

0.25 mm

1 m

18 m/s

Actuating distance up to 55 mm depending on actuating magnet

BP 10 S
2x BP 10 S
BP 15 S
BP 34 S
BP 20 S
BP 31 S
BP 11 S
2x BP 11 S
BP 12 S
BP 21 S
2x BP 21 S
BP 10 N
2x BP 10 N
BP 15 N
2 x BP 15/2 N
2x BP 15/2 S
BP 34 N
BP 20 N
BP 31 N
BP 11 N
2x BP 11 N
BP 12 N
2x BP 12 N
2x BP 12 S
BP 21 N
2x BP 21 N
BE 20
BE 20 N(S) ST 24VDC
BE 20 N(S) 48VDC

2 x BP 15/2
BP 10
BP 15
2 x BP 10
BP 34

5 mm … 55 mm
2 x BP 21S = 20 ... 55 mm
BP 34S = 10 ... 25 mm
BE 20 = 20 mm
BP 10N = 10 mm
BP 10S = 10 mm
2 x BP 10N = 15 mm
2 x BP 10S = 15 mm
BP 15N = 12 mm
BP 15S = 12 mm
2 x BP 15/2N = 17 mm
2 x BP 15/2S = 17mm
BP 34N = 10 ... 25mm
BP 20N = 5 ... 20 mm
BP 20S = 5 ... 20 mm
BP 31N = 5 ... 20 mm
BP 31S = 5 ... 20 mm
BP 11N = 10 mm
BP 11S = 10 mm
2 x BP 11N = 20 mm
2 x BP 11S = 20 mm
BP 12N = 15 mm
BP 12S = 15 mm
2 x BP 12N = 10 ... 25 mm
2 x BP 12S = 10 ... 25 mm
BP 21N = 15 ... 40 mm
BP 21S = 15 ... 40 mm
2 x BP 21N = 20 ... 55 mm
BE 20N = 15 mm
BE 20S = 15 mm

10 … 55 Hz, amplitude 1 mm

50 g / 11 ms

Actuator must be ordered separately.

300 Hz

Yes

1

Yes

Yes
