1 Reed contakts
Non-contact principle
Actuation from side
Flat design
Actuating surface and direction of actuation marked by switch symbol

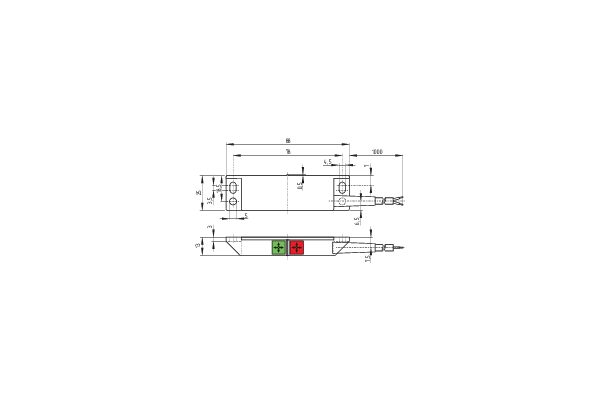

88 mm x 25 mm x 13 mm
Thermoplastic enclosure
Actuating distance up to 60 mm depending on actuating magnet and version
2 reed contacts

SKU

4030661059419
Manufacturer code

101133842
Current, Switching current, maximum

3 A
Type of execution, Actuating element

Magnet
Construction type housing

rectangular
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000000 Operations
Type of Execution, Switching output, Digital output, electric

Reed contacts
Height, Sensor

25 mm
Length, Sensor

13 mm
Width, Sensor

88 mm
Housing material

Glass-fibre, reinforced thermoplastic
Note, General

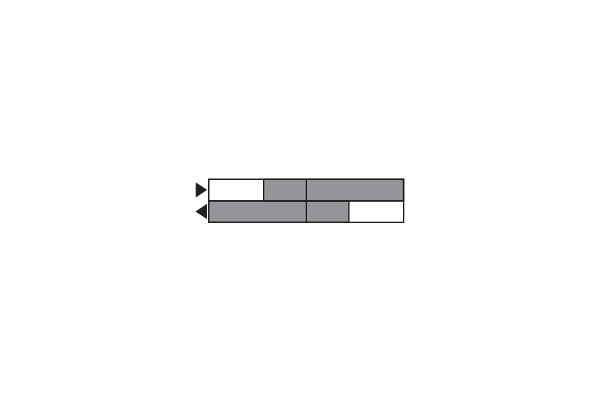

The opening and closing functions depend on the direction of
When the switches and actuators come together, the colours m
The switch is to be mounted on iron with a non-magnetic laye
Number, NO contacts

1
PIM maintenance status

Discharge "Online catalog"
Power, switching capacity, maximum

120 VA
Power, switching capacity, maximum

120 W
Type of switch function

Normally open contact (NO)
Type of electric connection

Cable
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661059419
SAP, product group

Initial
SAP, gross weight

65.000 g
SAP, net weight

65.000 g
Temperature, Ambient temperature[generated product variant]

-25 ... +75 °C
Temperature, ambient temperature, maximum

75 °C
Temperature, ambient temperature, minimum

-25 °C
Time, Bounce duration, maximum

0.6 ms
Time, Bounce duration, minimum

0.3 ms
Voltage, Switching voltage, VAC, maximum

250 VAC
Web Type

Product range
Type of application, Actuating panel

lateral
Type of execution, mounting

Enclosure with mounting slots
Diameter, Wire cross-section, AWG

18 AWG
Diameter, Wire cross-section,

0.75 mm<sup>2</sup>
Distance, Repeat accuracy R _R

0.25 mm
Cable length

1 m
Material, cable mantle

H03VV-F
Movement, actuating speed, maximum

18 m/s
Notice, Switch distance Sn

Actuating distance up to 50 mm depending on actuating magnet
Number, cable wires, indication with cable cross-section, electrical

2
PNV, standard, certificates

cULus
Recommendation, actuator

BP 10
2x BP 10
BP 15
2x BP 15
2x BP 15/2
BP 34
BP 20
BP 31
BP 11
BP 12
BP 21
BE 20
Recommendation, Actuator, Lift switchgear

2 x BP 15/2
BP 10
2 x BP 15
BP 15
2 x BP 10
BP 34
Review, area, switch distance S_n

5 mm … 50 mm
BP 10 = 5 mm
2 x BP 10 = 17 mm
BP 15 = 6 mm
2 x BP 15 = 17 mm
2 x BP 15/2 = 17 mm
BP 20 = 20 mm
BP 31 = 20 mm
BP 12 = 10 ... 30 mm
BE 20 = 20 mm
BP 34 = 5 ... 20 mm
BP 11 = 8 ... 20 mm
BP 21= 25 ... 50 mm
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 1 mm
Review, restistance to shock

30 g / 11 ms
Included in delivery, number and type, general

Actuator must be ordered separately.
Time, Switching frequency, maximum

300 Hz
Selection (Yes/No),

Yes
Voltage, Switching voltage, VDC, maximum

250 VDC
Selection (Yes/No), Traceparts

Yes
