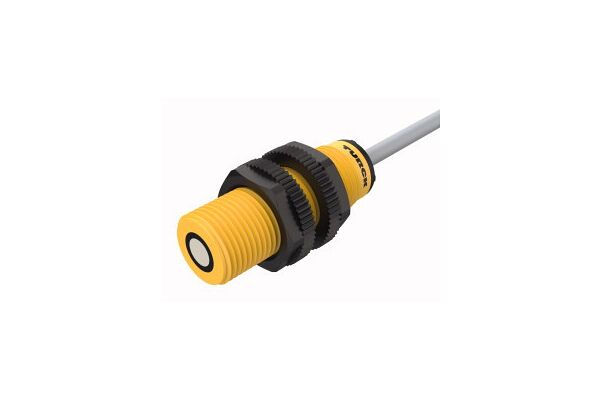

RU50L-S18-AN8X Ultrasonic Sensor, Retroreflective Sensor

RU50L-S18-AN8X

Ultrasonic Sensor, Retroreflective Sensor, Operating voltage 15…30 VDC, Max. range 500 mm, Cable length 2 m, Smooth sonic transducer face, Cylindrical housing S18, potted, Connection via cable, 2 m, Teach range adjustable via adapter, Temperature compensation, Teach-in range: 5…49 cm, Aperture angle of sonic cone: ±20 °, NPN switching output, NO contact, Switching range adjustable

  • SKU
    4047101459661
  • Manufacturer code
    100002166

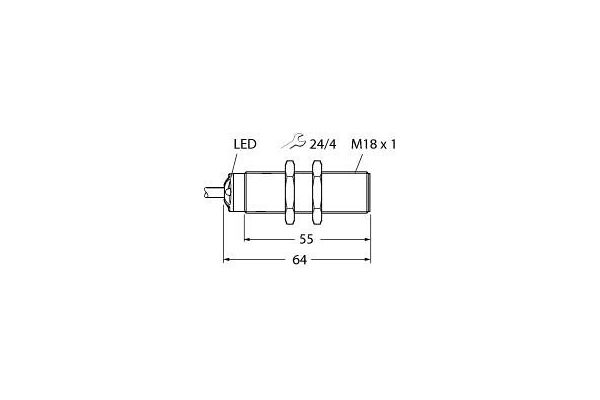

  • Length of sensor
    64 mm
  • Ambient temperature
    -20 - 50 °C
  • Supply voltage
    15 - 30 V
  • Switching frequency
    9.6 Hz
  • Diameter sensor
    18 mm
  • Measuring range length
    50 - 500 mm
  • No-load current
    50 mA
  • Relative repeat accuracy
    0.15 %
  • Type of electric connection
    Cable
  • Type of switching output
    NPN
  • Type of switch function
    Normally open contact (NO)
  • Setting procedure
    Other
  • Construction type housing
    Cylinder, screw-thread
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • NO/NC
    NO contact
  • Switching output
    NPN
  • Cable length (m)
    2
  • Manufacturer Turck

Product attachments

file-46069-1ecf9952e6625c97cb353795b4983e69.pdf (PDF, 1.14 MB)
