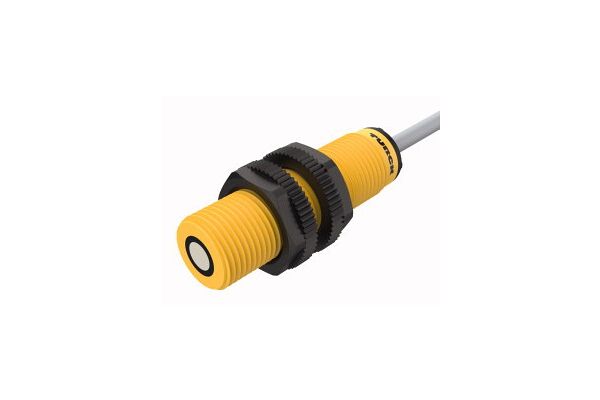

RU50U-S18-LU8X Ultrasonic Sensor, Diffuse Mode Sensor

RU50U-S18-LU8X

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 500 mm, Cable length 2 m, Smooth sonic transducer face, Cylindrical housing S18, potted, Connection via cable, 2 m, Temperature compensation, Blind zone: 5 cm, Range: 50 cm, Aperture angle of sonic cone: ±20 °, 1 × analog output, 0…10 V, Adjustable measuring range

  • SKU
    4047101442366
  • Manufacturer code
    100000749
  • Type of electric connection
    Cable
  • Type of switching output
    Other

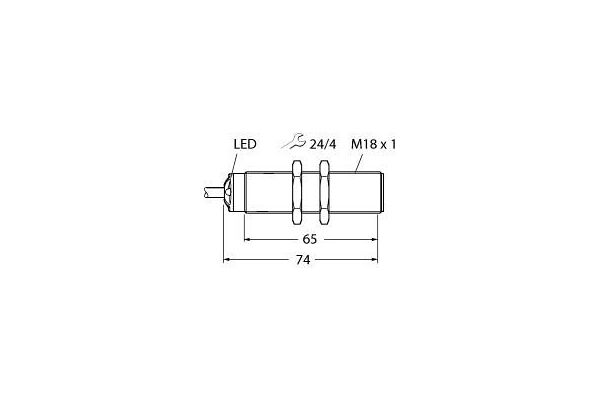

  • Length of sensor
    74 mm
  • Setting procedure
    Other
  • Measuring range length
    50 - 500 mm
  • Construction type housing
    Cylinder, screw-thread
  • No-load current
    50 mA
  • Ambient temperature
    -20 - 50 °C
  • Supply voltage
    15 - 30 V
  • Relative repeat accuracy
    0.15 %
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Type of analogy output
    0 V ... 10 V
  • Diameter sensor
    18 mm
  • Relative linearity deflection
    0.5 %
  • Cable length (m)
    2
  • Manufacturer Turck

Product attachments

file-50271-f92010e14ce334b221f30f6dd2d20c1e.pdf (PDF, 1.12 MB)
