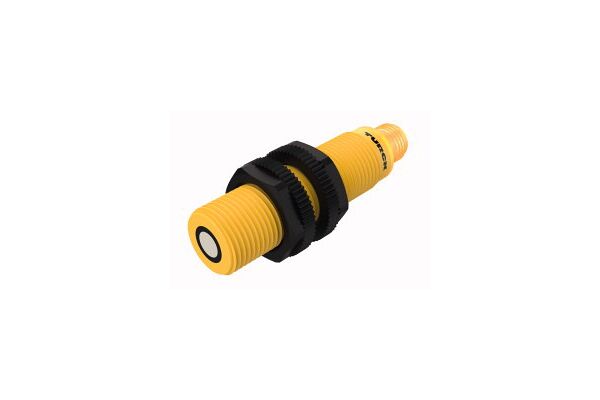

RU50U-S18-LU8X-H1141 Ultrasonic Sensor, Diffuse Mode Sensor

RU50U-S18-LU8X-H1141

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 500 mm, Smooth sonic transducer face, Cylindrical housing S18, potted, Connection via M12 × 1 male connector, Temperature compensation, Blind zone: 5 cm, Range: 50 cm, Aperture angle of sonic cone: ±20 °, 1 × analog output, 0…10 V, Adjustable measuring range

  • SKU
    4047101442373
  • Manufacturer code
    100000750
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    Other

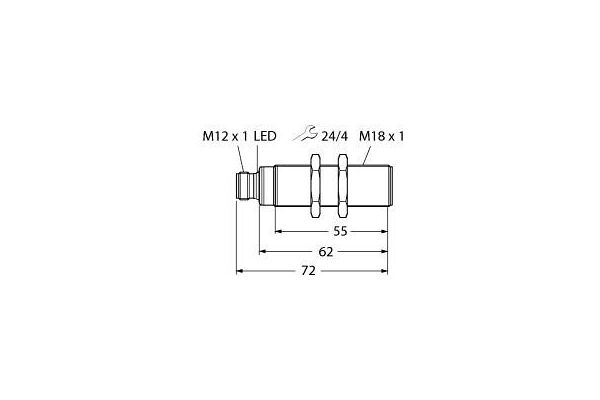

  • Length of sensor
    72 mm
  • Setting procedure
    Other
  • Measuring range length
    50 - 500 mm
  • Construction type housing
    Cylinder, screw-thread
  • No-load current
    50 mA
  • Ambient temperature
    -20 - 50 °C
  • Supply voltage
    15 - 30 V
  • Relative repeat accuracy
    0.15 %
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Type of analogy output
    0 V ... 10 V
  • Diameter sensor
    18 mm
  • Relative linearity deflection
    0.5 %
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-43115-ba7718d9a59bb2ce7efa899fbecf5a3f.pdf (PDF, 1.11 MB)
