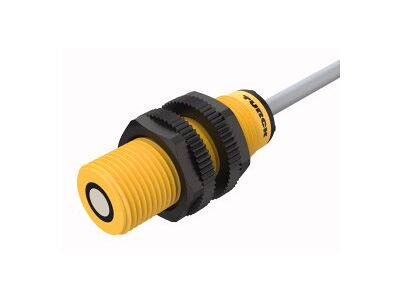

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 500 mm, Cable length 2 m, Smooth sonic transducer face, Cylindrical housing S18, potted, Connection via cable, 2 m, Teach range adjustable via adapter, Temperature compensation, Blind zone: 5 cm, Range: 50 cm, Aperture angle of sonic cone: ±20 °, NPN switching output, NO contact, Switching range adjustable

SKU

4047101446272
Manufacturer code

100000984
Length of sensor

64 mm
Ambient temperature

-20 - 50 °C
Supply voltage

15 - 30 V
Switching frequency

9.6 Hz
Diameter sensor

18 mm
Measuring range length

50 - 500 mm
No-load current

50 mA
Relative repeat accuracy

0.15 %
Relative linearity deflection

0.5 %
Type of electric connection

Cable
Type of switching output

NPN
Type of switch function

Normally open contact (NO)
Setting procedure

Other
Construction type housing

Cylinder, screw-thread
Material active area of sensor

Plastic
Housing material

Plastic
NO/NC

NO contact
Switching output

NPN
Cable length (m)

2

Manufacturer Turck
