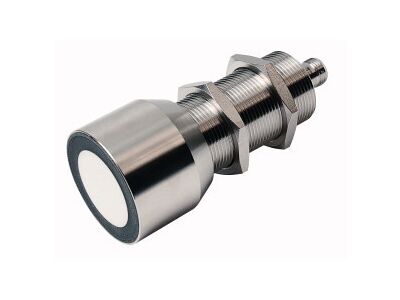

RU300U-M30E-2UP8X2T-H1151 Ultrasonic Sensor, Diffuse Mode Sensor

RU300U-M30E-2UP8X2T-H1151

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 3000 mm, Smooth sonic transducer face, Cylindrical housing M30, potted, Connection via M12 x 1 male, Measuring range adjustable via teach button/Easy-Teach, Temperature compensation, Blind zone: 30 cm, Range: 300 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±15 °, 2 x switching outputs, PNP, NO/NC programmable

  • SKU
    4047101287431
  • Manufacturer code
    1610040
  • Length of sensor
    89 mm
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    15 - 30 V
  • Switching frequency
    3.3 Hz
  • Diameter sensor
    30 mm
  • Measuring range length
    300 - 3000 mm
  • No-load current
    50 mA
  • Relative repeat accuracy
    0.15 %
  • Relative linearity deflection
    0.5 %
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable
  • Construction type housing
    Cylinder, screw-thread
  • Material active area of sensor
    Plastic
  • Housing material
    Other
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Switching output
    PNP
  • Manufacturer Turck

Product attachments

file-43664-0d67da2b28e114e662d8e6ed177beb93.pdf (PDF, 1.36 MB)
