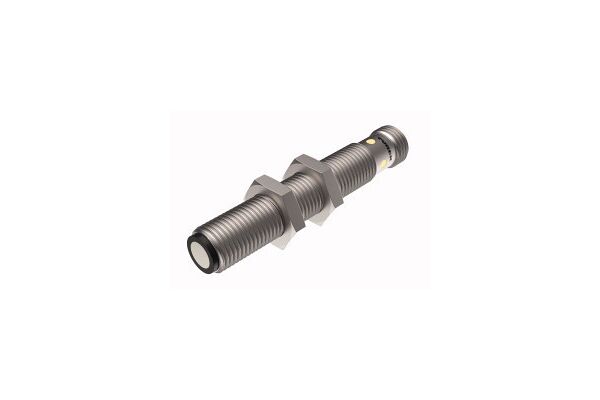

RU40U-M12-LI8X2-H1141 Ultrasonic Sensor, Diffuse Mode Sensor

RU40U-M12-LI8X2-H1141

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 400 mm, Smooth sonic transducer face, Cylindrical housing M12, potted, Connection via M12 × 1 male connector, Teach range adjustable via connection cable, Blind zone: 4 cm, Range: 40 cm, Resolution: 0.5 mm, Aperture angle of sonic cone: ±15 °, Analog output, 4…20 mA

  • SKU
    4047101436464
  • Manufacturer code
    100000281
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    Other
  • Length of sensor

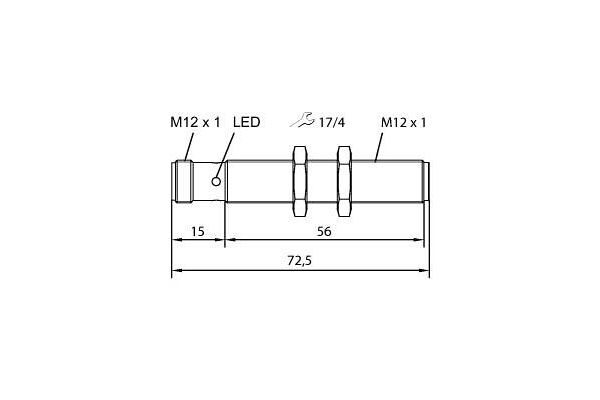

    72.5 mm
  • Measuring range length
    40 - 400 mm
  • Construction type housing
    Cylinder, screw-thread
  • No-load current
    50 mA
  • Ambient temperature
    -10 - 60 °C
  • Supply voltage
    15 - 30 V
  • Relative repeat accuracy
    0.15 %
  • Material active area of sensor
    Plastic
  • Housing material
    Other
  • Type of analogy output
    4 mA ... 20 mA
  • Diameter sensor
    12 mm
  • Relative linearity deflection
    0.5 %
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-48942-4969fe045361320da54eb977487c8290.pdf (PDF, 1.01 MB)
