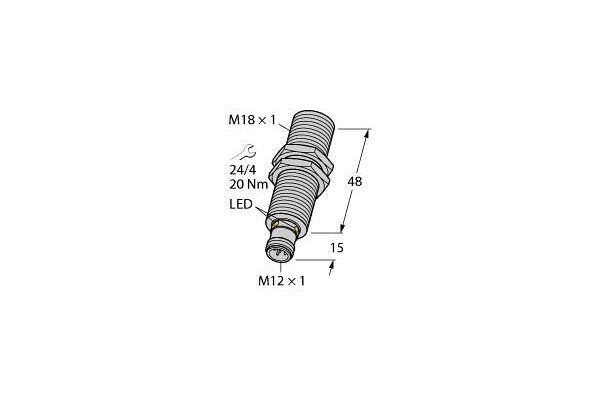

RU100L-M18M-UP8X2-H1151 Ultrasonic Sensor, Retroreflective Sensor

RU100L-M18M-UP8X2-H1151

Ultrasonic Sensor, Retroreflective Sensor, Operating voltage 15…30 VDC, Max. range 1000 mm, Smooth sonic transducer face, Cylindrical housing M18, potted, Connection via M12 x 1 male, Temperature compensation, Teach-in range: 15…98 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±16 °, 1 x switching output, PNP, Configurable via Teach-In, Parameterizable NO/NC

  • SKU
    4047101386578
  • Manufacturer code
    1610077
  • Length of sensor
    63 mm
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    15 - 30 V
  • Switching frequency
    6.9 Hz
  • Diameter sensor
    18 mm
  • Measuring range length
    150 - 1000 mm
  • No-load current
    50 mA
  • Relative repeat accuracy
    0.15 %
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable
  • Setting procedure
    Other
  • Construction type housing
    Cylinder, screw-thread
  • Material active area of sensor
    Plastic
  • Housing material
    Other
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Switching output
    PNP
  • Manufacturer Turck

Product attachments

file-31599-03ee16f0f3e5898e2d12fa976126bed1.pdf (PDF, 390.25 kB)
