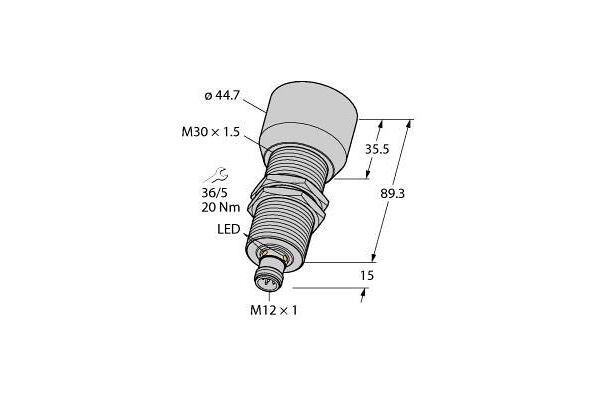

RU600U-M30M-2UP8X2-H1151 Ultrasonic Sensor, Diffuse Mode Sensor

RU600U-M30M-2UP8X2-H1151

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 6000 mm, Smooth sonic transducer face, Cylindrical housing M30, potted, Connection via M12 x 1 male, Measuring range adjustable via Easy-Teach, Temperature compensation, Blind zone: 60 cm, Range: 600 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±15 °, 2 x switching outputs, PNP, NO/NC programmable

  • SKU
    4047101349900
  • Manufacturer code
    1610037
  • Length of sensor
    104.3 mm
  • Ambient temperature
    -25 - 50 °C
  • Supply voltage
    15 - 30 V
  • Switching frequency
    1.6 Hz
  • Diameter sensor
    44.7 mm
  • Measuring range length
    600 - 6000 mm
  • No-load current
    50 mA
  • Relative repeat accuracy
    0.15 %
  • Relative linearity deflection
    0.5 %
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable
  • Setting procedure
    Teach-In
  • Construction type housing
    Cylinder, screw-thread
  • Material active area of sensor
    Plastic
  • Housing material
    Other
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Switching output
    PNP
  • Manufacturer Turck

Product attachments

file-30536-c6849d2fe65f2598253fd390bf1eaca5.pdf (PDF, 1.62 MB)
