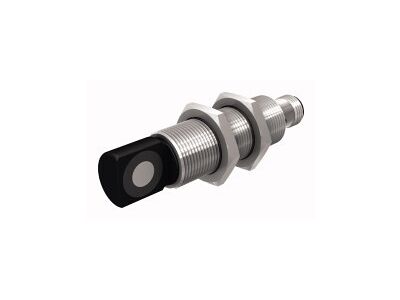

RU40L-M18M-UP8X2-H1151 Ultrasonic Sensor, Retroreflective Sensor

RU40L-M18M-UP8X2-H1151

Ultrasonic Sensor, Retroreflective Sensor, Operating voltage 15…30 VDC, Max. range 400 mm, Smooth sonic transducer face, Cylindrical housing M18, potted, Connection via M12 x 1 male, Temperature compensation, Teach-in range: 2.5…39 cm, Aperture angle of sonic cone: ±9 °, 1 x switching output, PNP, Configurable via Teach-In, Parameterizable NO/NC

  • SKU
    4047101386561
  • Manufacturer code
    1610076
  • Length of sensor
    63 mm
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    15 - 30 V
  • Switching frequency
    5.2 Hz
  • Diameter sensor
    18 mm
  • Measuring range length
    25 - 400 mm
  • No-load current
    50 mA
  • Relative repeat accuracy
    0.15 %
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable
  • Setting procedure
    Other
  • Construction type housing
    Cylinder, screw-thread
  • Material active area of sensor
    Plastic
  • Housing material
    Other
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Switching output
    PNP
  • Manufacturer Turck

Product attachments

file-44831-1a94cc54744ea683aad8588cc5f5ab89.pdf (PDF, 378.31 kB)
