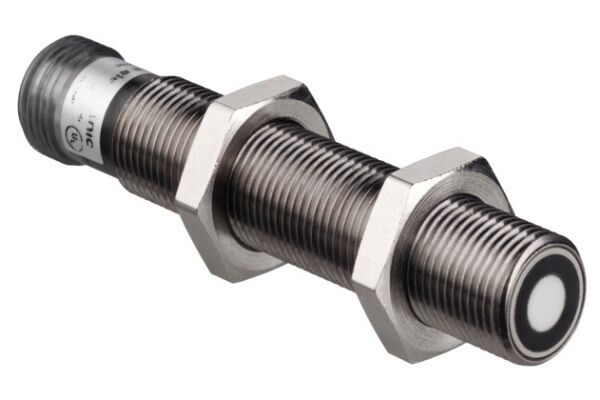

Special version: Teach input; Operating range: 0.01 ... 0.2 m; Direction of beam: Front; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, NPN, NC (normally closed); Switching frequency: 50 Hz; Connection: Connector, M12, 4 -pin; Design: Cylindrical, M12; Dimensions: 12 mm x 70 mm; Housing material: Metal

SKU

2110-50113999
Manufacturer code

50113999
Type of electric connection

Connector M12
Type of switching output

NPN
Type of switch function

Breaker contact (NC)
Length of sensor

70 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder, screw-thread
Ambient temperature

-10 - 60 °C
Supply voltage

12 - 30 V
Switching frequency

50 Hz
Voltage type

DC
DC
DC
DC
Housing material

Other
Metal
Synchronisation possible

false
Diameter sensor

12 mm
Degree of protection (IP)

IP67
Material of cable sheath

Other
Supplyoltage (V)

12 ... 30
Design

Cylindrical
Switching frequency (Hz)

50
Direction of beam

Front
Most suitable applications

Distance measurement Object detection
Special version

Teach input
Operating range (m)

0.01 ... 0.2

Manufacturer Leuze
