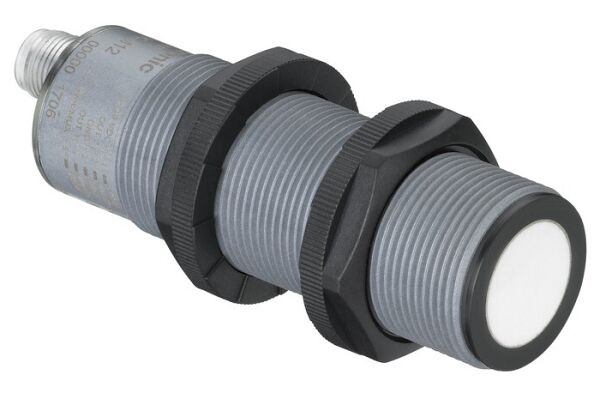

HTU330-3500.3/4PK-M12 Ultrasonic sensor

HTU330-3500.3/4PK-M12

Special version: 2 independent switching outputs, Multiplex operation, Synchronous operation; Operating range: 0.25 ... 3.5 m; Direction of beam: Front; Opening angle: 7 °; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Switching output 1: Transistor, PNP, NO (normally open); Switching output 2: Transistor, PNP, NC (normally closed); Inputs/outputs: 1 Piece(s); Switching frequency: 2 Hz; Connection: Connector, M12, 5 -pin; Design: Cylindrical, M30; Dimensions: 30 mm x 98.8 mm; Housing material: Plastic; Operational controls: Control buttons

  • SKU
    2110-50136110
  • Manufacturer code
    50136110
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Length of sensor
    98.8 mm
  • Setting procedure
    Manual adjustment
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cylinder, screw-thread
  • Ambient temperature
    -20 - 70 °C
  • Supply voltage
    12 - 30 V
  • Switching frequency
    2 Hz
  • Voltage type
    DC
    DC
    DC
    DC
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Synchronisation possible
    false
  • Diameter sensor
    30 mm
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Other
  • No-load current
    50 mA
  • Max. output current
    100 A
  • Relative repeat accuracy
    0.5 %
  • Material active area of sensor
    Plastic
  • Relative linearity deflection
    1 %
  • Supplyoltage (V)
    12 ... 30
  • Design
    Cylindrical
  • Switching frequency (Hz)
    2
  • Operational controls
    Control buttons
  • Direction of beam
    Front
  • Special version
    Multiplex operation
    2 independent switching outputs
    Synchronous operation
  • Inputs/outputs (pcs)
    1
  • Operating range (m)
    0.25 ... 3.5
  • Manufacturer Leuze

Product attachments

PAL_HTU330_3500_6000_2SWO_en_50135825 (LINK)
