Name: TipTeh d.o.o.
Address: Ulica Ivana Roba 23, Ljubljana, 1000, SI
Telephone: +38612005150
Price range: €€

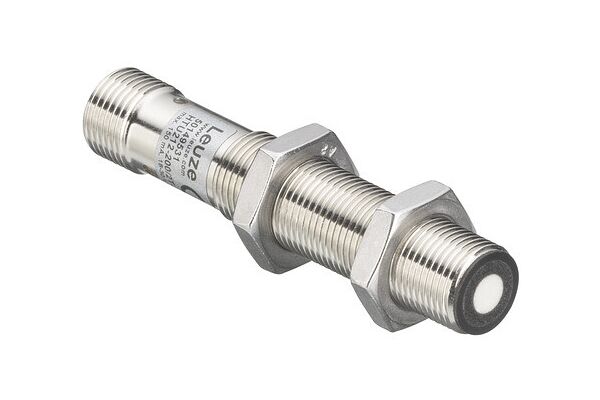

Special version: Teach input; Operating range: 0.02 ... 0.2 m; Direction of beam: Front; Opening angle: 9 °; Supply voltage: 18 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, NPN, Dark switching; Switching frequency: 20 Hz; Connection: Connector, M12, 4 -pin; Design: Cylindrical, M12; Dimensions: 12 mm x 65 mm; Housing material: Metal

SKU

50149532
Manufacturer code

50149532
Type of electric connection

Connector M12
Type of switching output

NPN
Length of sensor

65 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder, screw-thread
Ambient temperature

-25 - 70 °C
Supply voltage

18 - 30 V
Switching frequency

20 Hz
Voltage type

DC
DC
DC
DC
Housing material

Other
Metal
Synchronisation possible

false
Diameter sensor

12 mm
Degree of protection (IP)

IP67
Material of cable sheath

Other
No-load current

40 mA
Max. output current

150 A
Relative repeat accuracy

0.25 %
Supplyoltage (V)

18 ... 30
Design

Cylindrical
Switching frequency (Hz)

20
Direction of beam

Front
Most suitable applications

Detection tasks requiring precise measurement in confined spaces.
Special version

Teach input
Operating range (m)

0.02 ... 0.2

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
