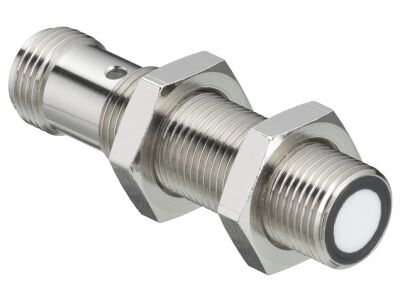

Special version: Multiplex operation, Synchronous operation, Teach input; Operating range: 0.015 ... 0.5 m; Direction of beam: Front; Opening angle: 3 ... 11 °; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Switching output 1: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN); Switching output 2: Transistor, Push-pull, Light switching (PNP)/dark switching (NPN); Switching frequency: 12 Hz; Interface: IO-Link; Connection: Connector, M12, 5 -pin; Design: Cylindrical, M12; Dimensions: 12 mm x 50 mm; Housing material: Metal

SKU

50150584
Manufacturer code

50150584
Type of electric connection

Connector M12
Type of switching output

PNP/NPN
Length of sensor

50 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder, screw-thread
Ambient temperature

-25 - 65 °C
Supply voltage

12 - 30 V
Switching frequency

12 Hz
Voltage type

DC
DC
DC
DC
Housing material

Other
Metal
Synchronisation possible

false
Diameter sensor

12 mm
Degree of protection (IP)

IP67
Material of cable sheath

Other
Standard for interfaces

Other
No-load current

35 mA
Max. output current

100 A
Relative linearity deflection

4 %
Supplyoltage (V)

12 ... 30
Design

Cylindrical
Switching frequency (Hz)

12
Direction of beam

Front
Most suitable applications

Precise distance measurement Object detection in automation systems
Special version

Teach input
Multiplex operation
Synchronous operation
Interface

IO-Link
Operating range (m)

0.015 ... 0.5

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
