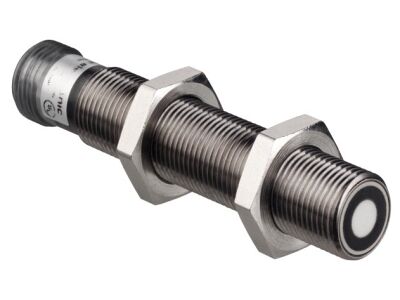

HRTU 412/4NO.2-S-S12 Ultrasonic sensor

HRTU 412/4NO.2-S-S12

Special version: Teach input; Operating range: 0.01 ... 0.2 m; Direction of beam: Front; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, NO (normally open); Switching frequency: 50 Hz; Connection: Connector, M12, 4 -pin; Design: Cylindrical, M12; Dimensions: 12 mm x 70 mm; Housing material: Metal

  • SKU
    2110-50113993
  • Manufacturer code
    50113993
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Length of sensor
    70 mm
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cylinder, screw-thread
  • Ambient temperature
    -10 - 60 °C
  • Supply voltage
    12 - 30 V
  • Switching frequency
    50 Hz
  • Voltage type
    DC
    DC
    DC
    DC
  • Housing material
    Other
    Metal
  • Synchronisation possible
    false
  • Diameter sensor
    12 mm
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Other
  • Supplyoltage (V)
    12 ... 30
  • Design
    Cylindrical
  • Switching frequency (Hz)
    50
  • Direction of beam
    Front
  • Most suitable applications
    Proximity detection Object measurement
  • Special version
    Teach input
  • Operating range (m)
    0.01 ... 0.2
  • Manufacturer Leuze

Product attachments

DS_HRTU412_en_P (LINK)
