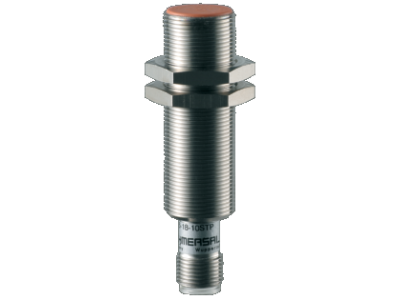

IFL 15-30-10STP Inductive proximity sensor

IFL 15-30-10STP
Metal enclosure
DC 3-wire
miniature body
Connector M12
Design M30
  • SKU
    4030661018706
  • Manufacturer code
    101108111
  • Current, Value for voltage drop Ud (current output)
    0.2 A
  • Current, Rated operating current
    200 mA
  • Construction type housing
    Cylinder, thread
  • Type of Execution, Terminals, mechanical
    not flush
  • Type of Execution, Protection circuit, integrated
    Protection against polarity reversal
    Surge protection
    Max. fuse rating
    inductive interference protection
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Protection class (Operating resource)
    0
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    II
  • Type of switching output
    p-type
  • Diameter, Sensors, Metric ISO-Thread
    M30
  • Range, switch distance Sn
    15 mm
  • Diameter, width across flats, abbreviation
    36 BK
  • Material, active area
    Plastic
  • Housing material
    Brass
  • Material, enclosure coating
    nickel-plated
  • Material, nut
    Brass
  • Standard, standards
    EN IEC 60947-5-2
    DIN VDE 0660-208
  • Note, Integral System Diagnostics, Status
    yellow LED
  • Number, cable wires, electrical
    3
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of switch function
    Normally open contact (NO)
  • Type of electric connection
    Cable
    Connector M12
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661018706
  • SAP, product group
    Initial
  • SAP, gross weight
    136.000 g
  • SAP, net weight
    136.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, switching frequency, approx.
    10 Hz
  • Tightening torque, torque, nuts, maximum
    30 Nm
  • Voltage, voltage drop Ud, maximum
    1.2 V
  • Voltage, Operating voltage, maximum
    30 V
  • Voltage, Operating voltage, minimum
    10 V
  • Voltage, rated operating voltage range, maximum
    30 VDC
  • Voltage, rated operating voltage range, minimum
    10 VDC
  • Voltage type
    DC
  • Web Type
    Product range
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Current, Residual current, Digital output, maximum
    1 mA
  • Cable length
    2 m
  • Length, Sensor
    100 mm
  • Material, cable mantle
    PVC
  • Note, General
    Instead of nuts, a mounting clamp can be provided.
  • PNV, standard, certificates
    CCC
  • Time, Rated supply frequency, maximum
    65 Hz
  • Time, Rated supply frequency, minimum
    45 Hz
  • Voltage, Rated impulse withstand voltage
    4 kV
