IFL 2-6,5M-01ST2P Inductive proximity sensor

IFL 2-6,5M-01ST2P
Metal enclosure
DC 3-wire
Connector
Design Ø 6.5 mm
  • SKU
    4030661047430
  • Manufacturer code
    101117671
  • Current, Value for voltage drop Ud (current output)
    0.2 A
  • Current, Rated operating current
    200 mA
  • Construction type housing
    Cylinder smooth
  • Type of Execution, Terminals, mechanical
    flush
  • Type of Execution, Protection circuit, integrated
    Protection against polarity reversal
    Surge protection
    Max. fuse rating
    inductive interference protection
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Protection class (Operating resource)
    0
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    0
  • Type of switching output
    p-type
  • Range, switch distance Sn
    2 mm
  • Housing material
    Brass
  • Material, enclosure coating
    nickel-plated
  • Standard, standards
    EN IEC 60947-5-2
    DIN VDE 0660-208
  • Note, Integral System Diagnostics, Status
    yellow LED
  • Number, cable wires, electrical
    3
  • PIM maintenance status
    Discharge "Archive"
  • Type of switch function
    Opener (NC)
  • Type of electric connection
    Connector M8
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661047430
  • SAP, product group
    Initial
  • SAP, gross weight
    12.000 g
  • SAP, net weight
    12.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, switching frequency, approx.
    3000 Hz
  • Voltage, voltage drop Ud, maximum
    1.2 V
  • Voltage, Operating voltage, maximum
    30 V
  • Voltage, Operating voltage, minimum
    10 V
  • Voltage, rated operating voltage range, maximum
    30 VDC
  • Voltage, rated operating voltage range, minimum
    10 VDC
  • Voltage type
    DC
  • Web Type
    Product range
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Length, Sensor
    54 mm
  • Height, Sensor
    6.5 mm
  • Width, Sensor
    6.5 mm
  • Diameter, Sensor
    6.5 mm
  • Material, terminal fixing
    Thermoplastic
  • Note, included in delivery, number and type

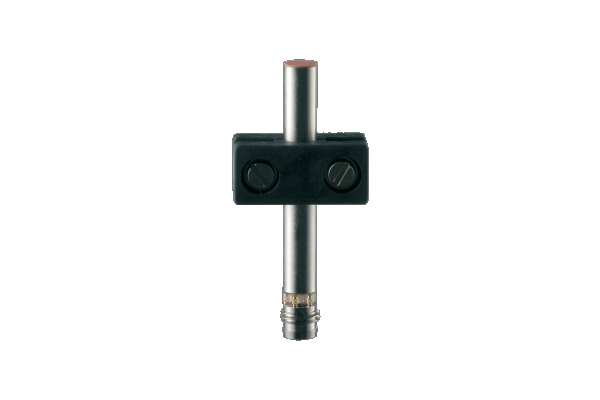

    Clamp H 6.5 is included in delivery
