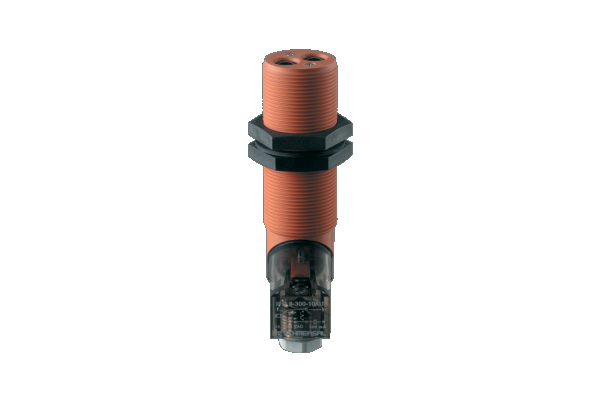

IFOD 10-300-10/01P Diffuse photoelectric optical sensor

IFOD 10-300-10/01P
Thermoplastic enclosure
DC 3-wire
Wiring compartment can be turned 180°
Design M30
Wiring compartment
  • SKU
    4030661545981
  • Manufacturer code
    103038718
  • Current, Value for voltage drop Ud (current output)
    0.4 A
  • Current, Rated operating current
    400 mA
  • Construction type housing
    Cylinder, thread
  • Type of Execution, Protection circuit, integrated
    inductive interference protection
  • Degree of protection (IP)
    IP65
  • Type of Execution, Protection class (Operating resource)
    2
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    II
  • Type of switching output
    p-type
  • Area, detection range Sd, maximum
    1000 mm
  • Diameter, Wire cross-section, AWG
    15 AWG
  • Height, Sensor
    46 mm
  • Length, Sensor
    118 mm
  • Diameter, Sensors, Metric ISO-Thread
    M30
  • Diameter, width across flats, abbreviation
    36 BK
  • Width, Sensor
    46 mm
  • Electrical data, Cable section, maximum
    3 x 1.5 mm²
  • Material, active area
    Plastic
  • Housing material
    Plastic
  • Material, nut
    Plastic
  • Material, washer
    Perbunan<sup>®</sup>
  • Standard, standards
    EN IEC 60947-5-2
    DIN VDE 0660-208
  • Note, Integral System Diagnostics, Status
    yellow LED
  • Number, cable wires, electrical
    3
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of switch function
    NO contact or NC contact
  • Type of electric connection
    Screw connection
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661545981
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    79.290 g
  • SAP, net weight
    79.290 g
  • Temperature, Ambient temperature[generated product variant]
    -5 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Ambient temperature
    -5 °C
  • Time, switching frequency, approx.
    100 Hz
  • Tightening torque, torque, nuts, maximum
    4 Nm
  • Voltage, voltage drop Ud, maximum
    2 V
  • Voltage, Operating voltage, maximum
    60 V
  • Voltage, Operating voltage, minimum
    10 V
  • Voltage, type, range
    DC
  • Web Type
    Product range
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Voltage, rated operating voltage range, maximum
    60 VDC
  • Voltage, rated operating voltage range, minimum
    15 VDC

Product attachments

file-28680-a10a9b1f556cb3dcbdfbee03d4added1.pdf (PDF, 179.3 kB)
