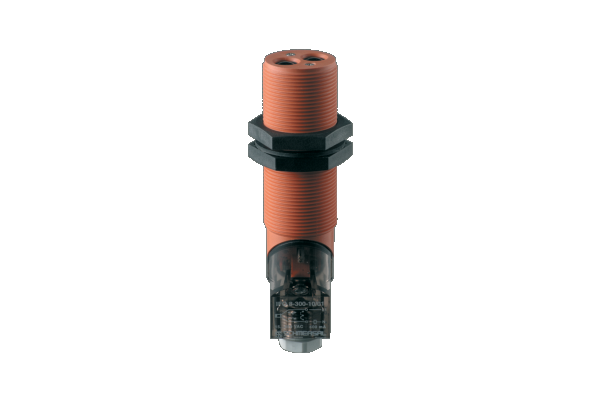

Thermoplastic enclosure
AC 2-wire
Wiring compartment can be turned 180°
Design M30
Wiring compartment

SKU

4030661545967
Manufacturer code

103038715
Current, Value for voltage drop U_d (current output)

0.5 A
Current, Residual current, Digital output, maximum

3 mA
Current, Operating current, minimum

10 mA
Current, Rated operating current

500 mA
Construction type housing

Cylinder, thread
Type of Execution, Protection circuit, integrated

inductive interference protection
Degree of protection (IP)

IP65
Type of Execution, Protection class (Operating resource)

2
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Type of switching output

Two-wire
Area, detection range Sd, maximum

800 mm
Diameter, Wire cross-section, AWG

15 AWG
Height, Sensor

46 mm
Length, Sensor

118 mm
Diameter, Sensors, Metric ISO-Thread

M30
Diameter, width across flats, abbreviation

36 BK
Width, Sensor

46 mm
Electrical data, Cable section, maximum

2 x 1.5 mm²
Material, active area

Plastic
Housing material

Plastic
Material, nut

Plastic
Material, washer

Perbunan<sup>®</sup>
Standard, standards

EN IEC 60947-5-2
DIN VDE 0660-208
Note, Integral System Diagnostics, Status

yellow LED
Number, cable wires, electrical

2
PIM maintenance status

Discharge "Online catalog"
Type of switch function

NO contact or NC contact
Type of electric connection

Screw connection
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661545967
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

72.210 g
SAP, net weight

72.210 g
Temperature, Ambient temperature[generated product variant]

-5 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Ambient temperature

-5 °C
Time, Rated supply frequency, maximum

65 Hz
Time, Rated supply frequency, minimum

45 Hz
Time, switching frequency, approx.

10 Hz
Tightening torque, torque, nuts, maximum

4 Nm
Voltage, voltage drop Ud, maximum

7 V
Voltage, Operating voltage, maximum

250 V
Voltage, Operating voltage, minimum

15 V
Voltage, Rated impulse withstand voltage

10 kV
Supply voltagemax

250
Supply voltagemin

15
Voltage, type, range

DC
Web Type

Product range
Selection (Yes/No), Integral System Diagnostics, status

Yes
