3 switches in one enclosure
Metal enclosure
two-side operation
wire up to 2 x 50 m long
Robust design
Low actuating force

SKU

4030661057293
Manufacturer code

101087887

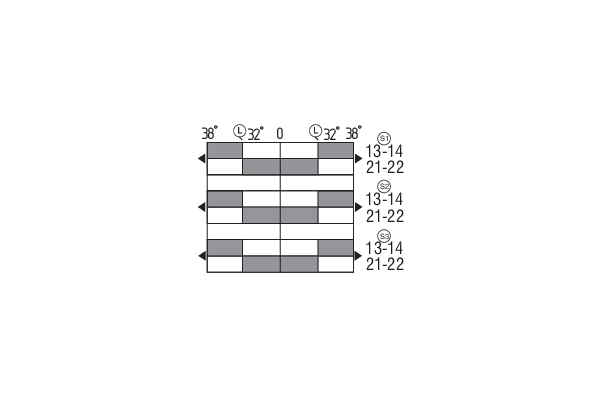

Type of application, Actuating direction

Each time 75° right-hand side and left-hand side rotation
Current, Thermal test current

10 A
Current, Utilisation category AC-15

2.5 A
Current, Utilisation category DC-13

6 A
Type of execution, Actuating element

Roller lever N300
Type of Execution, IP Protection class, General

IP65
Type of Execution, Mechanical life, minimum,

50000 Operations
Switching principle

Slow action
Angle, Positive break angle

32 °
Length, wire, maximum

50 m
Electrical data, Cable section, maximum

1.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Force, Actuating force, maximum

50 N
Force, Positive break force, minimum Force,

50 N
Material, contacts, electrical

Silver
Housing material

Grey cast iron, painted
Material, housing cover

Grey cast iron, painted
Standard, standards

EN IEC 60947-5-1
EN IEC 60947-5-5
EN ISO 13850
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Force, Actuating Force

30 N in wire direction
Note, General

At 3 m distance intermediate wire supports are required, see
Number, Auxiliary contacts

3
Number, Safety contacts

3
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
TÜV
Type of switch function

NO contact, NC contact
Type of electric connection

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661057293
SAP, product group

Initial
SAP, gross weight

4995.000 g
SAP, net weight

4995.000 g
Temperature, Ambient temperature[generated product variant]

-30 ... +90 °C
Temperature, ambient temperature, maximum

90 °C
Temperature, ambient temperature, minimum

-30 °C
Tightening torque, Positive break torque

0.18 Nm
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

250 VAC
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Reset by pull ring

Yes
Selection (Yes/No), Traceparts

Yes
Colour, indicator lamp

Yellow
Power, electrical consumption

5 W
Selection (Yes/No), Indicator lamp

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
