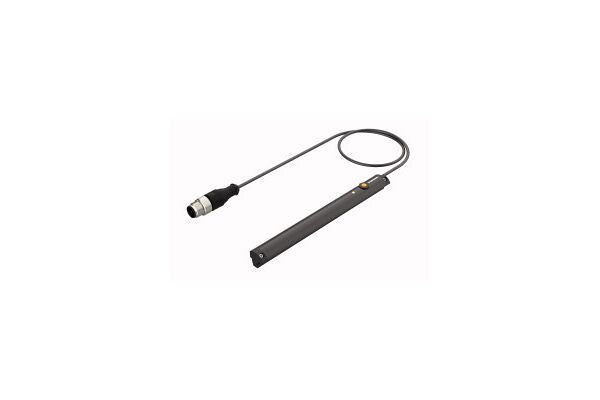

WIM32-UNTL-IOL-0.3-RS4 Magnetic Inductive Linear Position Sensor, For Analog Monitoring of Pneumatic Cy

WIM32-UNTL-IOL-0.3-RS4

Magnetic Inductive Linear Position Sensor, For Analog Monitoring of Pneumatic Cylinders, Operating voltage 15…30 VDC, Measuring range 32 mm, Cable length 0.3 m, Plastic, PA66‐GF25, For direct mounting on pneumatic T-groove cylinders, Measuring range: 32 mm, 4-wire, 15…30 VDC, IO-Link 1.1, COM2, Teachable via IO-Link or button, Cable with M12 × 1 male connector

  • SKU
    4047101586299
  • Manufacturer code
    100034306
  • Voltage type
    DC
  • Type of actuation
    Magnet
  • Type of electric connection
    Cable with connector
  • Width sensor
    13.6 mm
  • Height of sensor
    14.2 mm
  • Length of sensor
    45 mm
  • Construction type housing
    Cuboid
  • Ambient temperature
    -20 - 70 °C
  • Rated supply voltage at DC
    15 - 30 V
  • Cross-/short circuit identification possible
    true
  • Degree of protection (IP)
    IP67
  • Connector gender
    male
  • Network protocol
    IO-link
  • Cable length (m)
    0.3
  • Manufacturer Turck

Product attachments

file-34266-4813e4a606482c6bbdc820e3c5846530.pdf (PDF, 756.92 kB)
