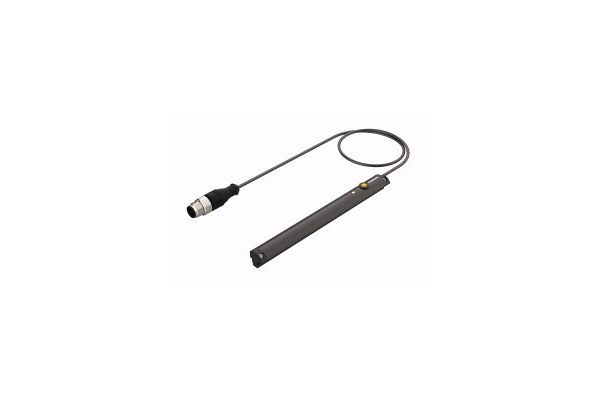

WIM160-UNTL-IOL-0.3-RS4 Magnetic Inductive Linear Position Sensor, For Analog Monitoring of Pneumatic Cy

WIM160-UNTL-IOL-0.3-RS4

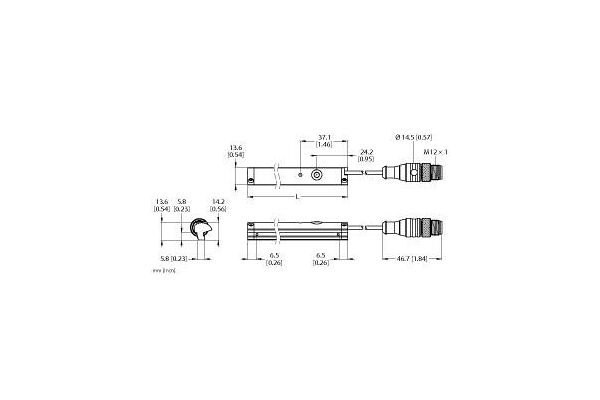

Magnetic Inductive Linear Position Sensor, For Analog Monitoring of Pneumatic Cylinders, Operating voltage 15…30 VDC, Measuring range 160 mm, Cable length 0.3 m, Plastic, PA66‐GF25, For direct mounting on pneumatic T-groove cylinders, Measuring range: 160 mm, 4-wire, 15…30 VDC, IO-Link 1.1, COM2, Teachable via IO-Link or button, Cable with M12 × 1 male connector

  • SKU
    4047101586336
  • Manufacturer code
    100034310
  • Voltage type
    DC
  • Type of actuation
    Magnet
  • Type of electric connection
    Cable with connector
  • Width sensor
    13.6 mm
  • Height of sensor
    14.2 mm
  • Length of sensor
    173 mm
  • Construction type housing
    Cuboid
  • Ambient temperature
    -20 - 70 °C
  • Rated supply voltage at DC
    15 - 30 V
  • Cross-/short circuit identification possible
    true
  • Degree of protection (IP)
    IP67
  • Connector gender
    male
  • Network protocol
    IO-link
  • Cable length (m)
    0.3

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-31512-369269ab5825eb7ebcf1f02ad8b66ff8.pdf (PDF, 756.95 kB)
