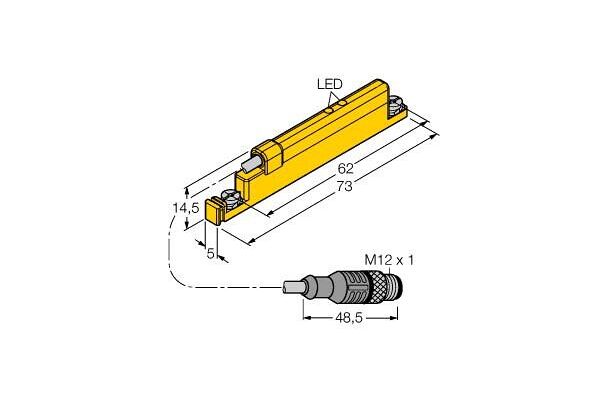

WIM45-UNTL-LIU5X2-0.3-RS4 Linear Position Sensor, For Analog Monitoring of Pneumatic Cylinders

WIM45-UNTL-LIU5X2-0.3-RS4

Linear Position Sensor, For Analog Monitoring of Pneumatic Cylinders, Operating voltage 15…30 VDC, Measuring range 45 mm, Cable length 0.3 m, Plastic, PA12‐GF30, For direct mounting on pneumatic T-groove cylinders, Magnetic field status displayed via two LEDs, Measured value storage, Hardly affected by external magnetic fields, 4-wire, 15…30 VDC, 0…10 V and 4…20 mA, Pigtail with male end, M12 x 1

  • SKU
    4047101200492
  • Manufacturer code
    1536621
  • Voltage type
    DC
  • Type of actuation
    Magnet
  • Type of electric connection
    Cable with connector
  • Width sensor
    5 mm
  • Height of sensor
    14.5 mm
  • Length of sensor
    73 mm
  • Ambient temperature
    -25 - 70 °C
  • Rated supply voltage at DC
    15 - 30 V
  • Cross-/short circuit identification possible
    true
  • Degree of protection (IP)
    IP67
  • Type of switching output
    Other
  • Connector gender
    male
  • Cable length (m)
    0.3
  • Manufacturer Turck

Product attachments

file-39063-83ead20eb8f7a4b79d0a93234eb49e72.pdf (PDF, 451.24 kB)
