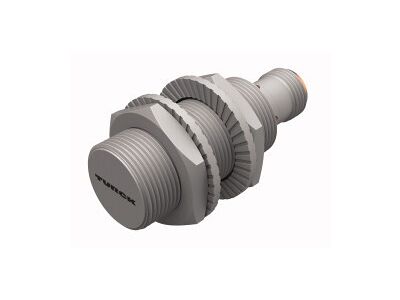

BI3-M12-IOLU69X2-H1141 Inductive Sensor, With Analog Output and IO-Link Communication

BI3-M12-IOLU69X2-H1141

Inductive Sensor, With Analog Output and IO-Link Communication, Operating voltage 15…30 VDC, Measuring range 0.2 mm - 3 mm, Flush, M12 × 1 threaded barrel, Chrome-plated brass, Configuration and communication via IO-Link v1.1 or standard I/O, Adjustable distance value in 12-bit IO-Link process data, Switchpoint configurable via two teach points, Switching output freely configurable, Identification via 32-byte memory, Temperature monitoring with adjustable limits, 4‐wire, 15…30 VDC, Analog output, 0…10 V (2…10 V parameterizable), M12 × 1 connector

  • SKU
    4047101447347
  • Manufacturer code
    100001075
  • Operating voltage
    15 - 30 V
  • Supply voltage
    15 - 30 V
  • Relative linearity deflection
    1 %
  • Measuring range
    0.2 - 3 mm
  • Type of electric connection
    Plug-in connection
  • Type of analogy output
    0 V ... 10 V
  • Mechanical mounting condition for sensor
    Concise
  • Housing material
    Other
  • Material active area of sensor
    Plastic
  • Construction type housing
    Cylinder, screw-thread
  • Length of sensor
    62 mm
  • Diameter sensor
    12 mm
  • Ambient temperature
    -25 - 70 °C
  • Degree of protection (IP)
    IP67
  • Flush / Non-flush
    Flush
  • Network protocol
    IO-link
  • Manufacturer Turck

Product attachments

file-46310-409a7daa8de74f9895c0f414ccc48c5f.pdf (PDF, 1.29 MB)
