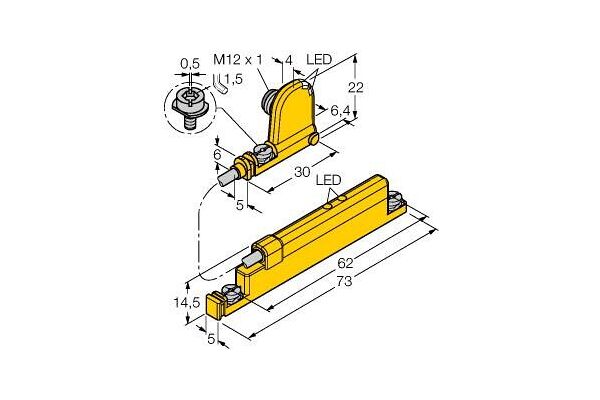

WIM45-UNTL-0.3-BIM-UNT-LUAP6X4-H1141 Linear Position Sensor, For Analog Monitoring of Pneumatic Cylinders

WIM45-UNTL-0.3-BIM-UNT-LUAP6X4-H1141

Linear Position Sensor, For Analog Monitoring of Pneumatic Cylinders, Operating voltage 15…30 VDC, Measuring range 45 mm, Plastic, PA12‐GF30, For direct mounting on pneumatic T-groove cylinders, Magnetic field status displayed via two LEDs, Measured value storage, Hardly affected by external magnetic fields, 4‐wire, 15…30 VDC, NO contact, PNP output, Analog output, 0…10 V, Cable with male end M12 x 1

  • SKU
    4047101200515
  • Manufacturer code
    1536623
  • Voltage type
    DC
  • Type of actuation
    Magnet
  • Type of electric connection
    Cable with connector
  • Width sensor
    5 mm
  • Height of sensor
    14.5 mm
  • Length of sensor
    73 mm
  • Ambient temperature
    -25 - 70 °C
  • Rated supply voltage at DC
    15 - 30 V
  • Cross-/short circuit identification possible
    true
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP
  • Connector gender
    male
  • Type of switching output
    PNP
  • Type of switch function
    NO contact
  • Manufacturer Turck

Product attachments

file-35262-ba3a0e7f8ee9308db61960cb84d6757b.pdf (PDF, 513.44 kB)
