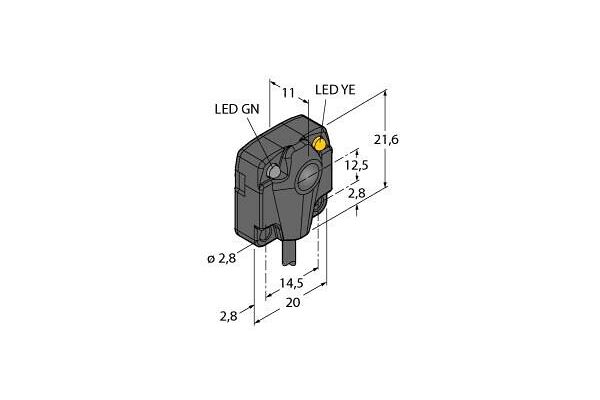

Q106E Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor

Q106E

Photoelectric Sensor, Opposed Mode Sensor (Emitter), Miniature Sensor, Operating voltage 10…30 VDC, Max. range 1800 mm, Cable length 2 m, Cable, 2 m, Protection class IP67, Glass lens, Operating voltage: 10…30 VDC

  • SKU
    0662488447564
  • Manufacturer code
    3044756
  • Type of electric connection
    Cable
  • Construction type housing
    Cuboid
  • Width sensor
    20 mm
  • Height of sensor
    10 mm
  • Length of sensor
    21.6 mm
  • Material of optical surface
    Glass
  • Ambient temperature
    -40 - 70 °C
  • Response time
    8 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    1800 mm
  • Max. switching distance
    1800 mm
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-51107-1b257c23e27221b65c2e88b55810a4bc.pdf (PDF, 137.44 kB)
