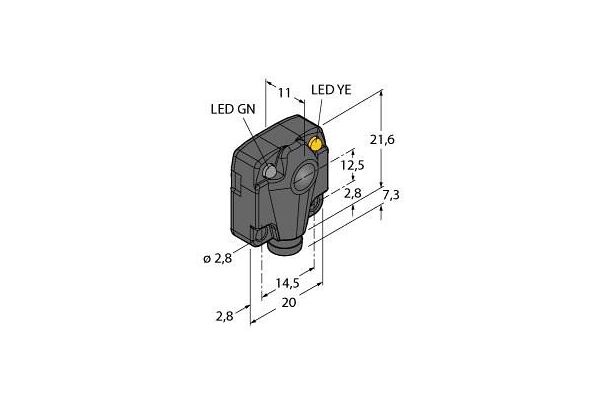

Q10AP6RQ Photoelectric Sensor, Opposed Mode Sensor (Receiver), Miniature Sensor

Q10AP6RQ

Photoelectric Sensor, Opposed Mode Sensor (Receiver), Miniature Sensor, Operating voltage 10…30 VDC, Max. range 1800 mm, Male connector, M8 × 1, 3-pin, Protection class IP67, Glass lens, Operating voltage: 10…30 VDC, PNP/NPN switching output, light operation

  • SKU
    0662488447533
  • Manufacturer code
    3044753
  • Type of electric connection
    Connector M8
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    20 mm
  • Height of sensor
    10 mm
  • Length of sensor
    28.9 mm
  • Sensing mode
    Light switching
    Light switching
  • Material of optical surface
    Glass
  • Ambient temperature
    -40 - 70 °C
  • Response time
    8 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    1800 mm
  • Max. switching distance
    1800 mm
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-44594-499f3ec1f26164e293cfdd139a505f21.pdf (PDF, 170.95 kB)
