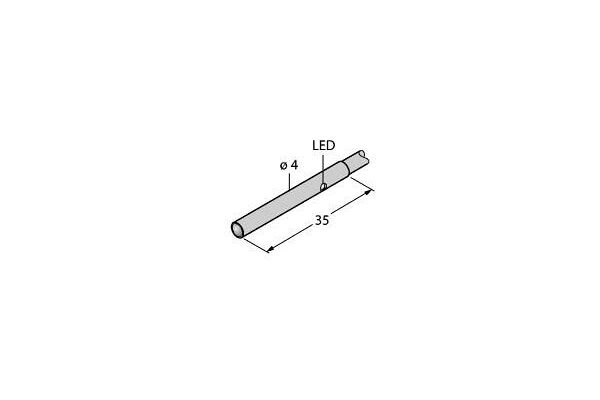

VSM4RP6R Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Miniature Sensor

VSM4RP6R

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Miniature Sensor, Operating voltage 10…30 VDC, Max. range 250 mm, Cable length 2 m, Stainless steel housing V2A, Protection class IP67, Cable, 2 m, 3-wire, Lens, sapphire crystal glass, Operating voltage: 10…30 VDC, PNP switching output, dark operation

  • SKU
    0662488132965
  • Manufacturer code
    3013296
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Length of sensor
    35 mm
  • Sensing mode
    Dark switching
    Dark switching
  • Material of optical surface
    Glass
  • Ambient temperature
    0 - 55 °C
  • Response time
    2.5 s
  • Switching frequency
    250 Hz
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    250 mm
  • Max. switching distance
    250 mm
  • Diameter sensor
    4 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Metal
  • Type of switching output
    PNP
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-50408-9789dd60984fb16fc8cf70b29f08857b.pdf (PDF, 134.32 kB)
