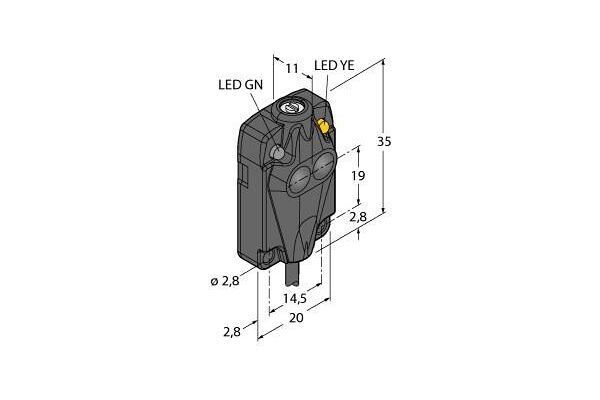

Q10AP6D Photoelectric Sensor, Diffuse Mode Sensor, Miniature Sensor

Q10AP6D

Photoelectric Sensor, Diffuse Mode Sensor, Miniature Sensor, Operating voltage 10…30 VDC, Max. range 500 mm, Cable length 2 m, Cable, 2 m, Protection class IP67, Glass lens, Operating voltage: 10…30 VDC, PNP/NPN switching output, light operation

  • SKU
    0662488448615
  • Manufacturer code
    3044861
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    20 mm
  • Height of sensor
    10 mm
  • Length of sensor
    35 mm
  • Sensing mode
    Light switching
    Light switching
  • Material of optical surface
    Glass
  • Ambient temperature
    -40 - 70 °C
  • Response time
    3 s
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    500 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-48528-eb0b482130c984a90d34d1365498a27a.pdf (PDF, 159.58 kB)
