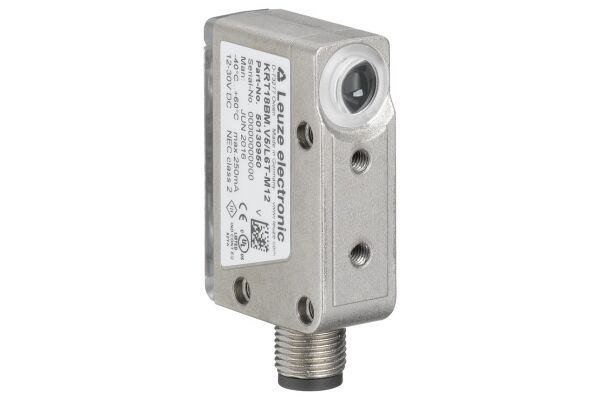

KRT18BM.VT5/L6T-M12 Contrast sensor

KRT18BM.VT5/L6T-M12
This contrast sensor features a teach input and tracking function for automatic signal adjustment. It operates within a range of 13 mm ± 3 mm, using an RGB LED light source. The device supports a supply voltage from 12 to 30 V DC and includes two digital switching outputs with multiple configurations. It offers a switching frequency of 15,000 Hz and connects via a 5-pin M12 connector. The sensor is housed in a metal casing and includes operational buttons.
  • SKU
    2110-50131242
  • Manufacturer code
    50131242
  • Number of semiconductor outputs with signalling function
    2
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Anticoincidence
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 3
  • Rated control supply voltage DC
    12 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Width sensor
    15 mm
  • Height of sensor
    47 mm
  • Length of sensor
    32.5 mm
  • Construction type housing
    Cuboid
  • Laser protection class
    Other
  • No-load current
    0 mA
  • Type of light
    Multi-coloured LED
  • With fibre optics connection
    false
  • Switching frequency
    15000 Hz
  • Degree of protection (IP)
    IP67
  • Ambient temperature
    -40 - 60 °C
  • With exchange lens
    false
  • Material of optical surface
    Plastic
  • Housing material
    Other
    Metal
  • With time function
    false
  • Max. output current
    100 A
  • Special version
    Teach input
    Tracking for automatic signal tracking
  • Supplyoltage (V)
    12 ... 30
  • Switching frequency (Hz)
    15000
  • Operational controls
    Button(s)
  • Interface
    IO-Link
  • Operating range (m)
    0.013
  • Manufacturer Leuze

Product attachments

DS_KRT18BM_5_IOLink_en_50133230 (LINK)
