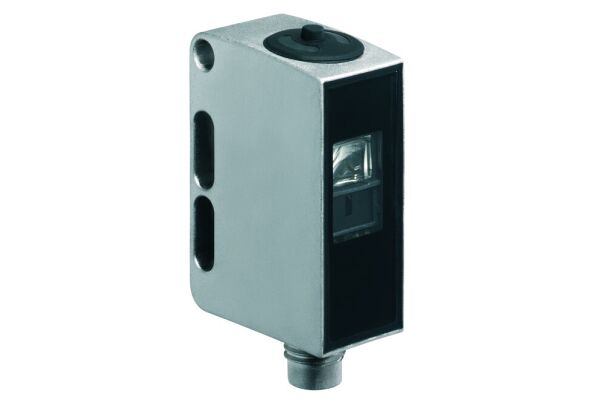

KRTM 55/4.1121,200-S12 Contrast sensor

This contrast sensor features a teach input and time function, with an operating range of 13 mm ± 2 mm or 0.011 to 0.015 m. It uses an RGB LED light source and operates with a supply voltage of 10 to 30 V DC. The sensor includes one digital switching output, with a PNP transistor that is light/dark switchable or reversible. It has a switching frequency of 10,000 Hz and connects via a 200 mm cable with a M12, 4-pin connector. The dimensions are 14 mm x 35.5 mm x 25 mm and the housing is made of stainless steel. The sensor can be operated using a teach button.
