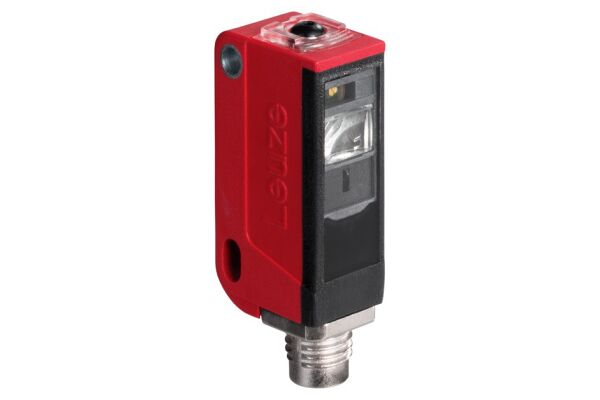

KRTL 3B/6.3111-S8 Contrast sensor

KRTL 3B/6.3111-S8
This contrast sensor features a teach input and time function. It operates within a range of 60 mm ± 20 mm using a red laser light source. The sensor is powered by a DC supply voltage of 10 to 30 V and includes one digital switching output. The switching output is a transistor with push-pull, supporting both light switching (PNP) and dark switching (NPN). It has a switching frequency of 4,000 Hz and connects via an M8, 4-pin connector. The dimensions are 11 mm x 32 mm x 17 mm, with a plastic housing and a teach button for operational control.
  • SKU
    2110-50111321
  • Manufacturer code
    50111321
  • Number of semiconductor outputs with signalling function
    1
  • Type of electric connection
    Connector M8
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Anticoincidence
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 3
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Width sensor
    11 mm
  • Height of sensor
    32 mm
  • Length of sensor
    17 mm
  • Setting procedure
    Teach-In
  • Construction type housing
    Cuboid
  • Laser protection class
    Class 1
  • No-load current
    0 mA
  • Type of light
    Laser diode, red light
  • With fibre optics connection
    false
  • Switching frequency
    4000 Hz
  • Degree of protection (IP)
    IP67
  • Ambient temperature
    -10 - 55 °C
  • With exchange lens
    false
  • Material of optical surface
    Glass
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • With time function
    false
  • Special version
    Teach input
    Time function
  • Supplyoltage (V)
    10 ... 30
  • Switching frequency (Hz)
    4000
  • Operational controls
    Teach button
  • Operating range (m)
    0.06
  • Manufacturer Leuze

Product attachments

DS_KRTL3B_en_50110624 (LINK)
