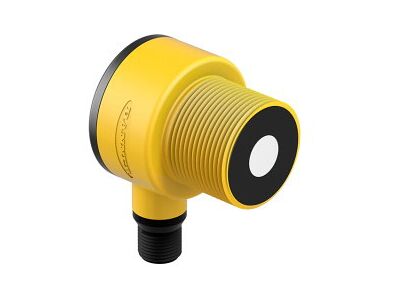

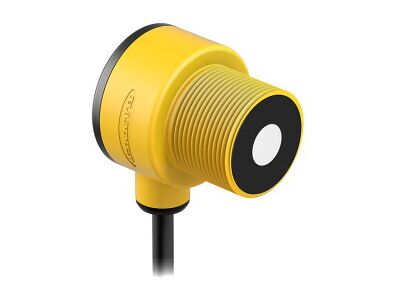

T30UXDAQPMA Ultrasonic Sensor, diffuse mode sensor, With Switching Output

T30UXDAQPMA

Ultrasonic Sensor, diffuse mode sensor, With Switching Output, Operating voltage 10…30 VDC, Max. range 1000 mm, Cable length 0.15 m, Compact design, Connection via male M12 x 1, 4-pin with 150 mm cable, Switching output, PNP/NPN adjustable, NO/NC adjustable, Integrated temperature compensation, Switching range adjustable via button or control line, Blind zone: 10 cm, Range: 100 cm

  • SKU
    0662488799977
  • Manufacturer code
    3079997
  • Length of sensor
    45 mm
  • Ambient temperature
    -40 - 70 °C
  • Supply voltage
    10 - 30 V
  • Switching frequency
    10 Hz
  • Diameter sensor
    40 mm
  • Measuring range length
    100 - 1000 mm
  • Type of electric connection
    Cable with connector
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Switching output
    PNP/NPN
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-33040-949a061f508a02d12553c73b9df87282.pdf (PDF, 274.43 kB)
