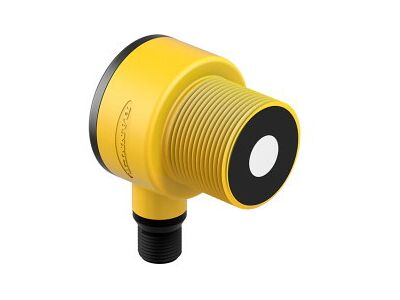

T30UXDB Ultrasonic Sensor, diffuse mode sensor, With Switching Output

T30UXDB

Ultrasonic Sensor, diffuse mode sensor, With Switching Output, Operating voltage 10…30 VDC, Max. range 2000 mm, Cable length 2 m, Compact design, Cable, 4-pin, 2 m, Switching output, PNP/NPN adjustable, NO/NC adjustable, Integrated temperature compensation, Switching range adjustable via button or control line, Blind zone: 20 cm, Range: 200 cm

  • SKU
    0662488799984
  • Manufacturer code
    3079998
  • Length of sensor
    45 mm
  • Ambient temperature
    -40 - 70 °C
  • Supply voltage
    10 - 30 V
  • Switching frequency
    5 Hz
  • Diameter sensor
    40 mm
  • Measuring range length
    200 - 2000 mm
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • NO/NC
    NO/NC contacts
  • Switching output
    PNP/NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-35682-1965a205104f2360c188730c61c612d1.pdf (PDF, 343.22 kB)
