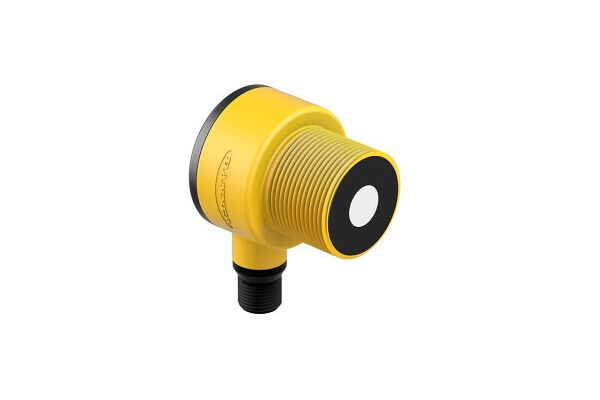

Ultrasonic Sensor, diffuse mode sensor, With Switching Output, Operating voltage 10…30 VDC, Max. range 3000 mm, Compact design, Cable with male end M12 x 1, 4-pin, Switching output, PNP/NPN adjustable, NO/NC adjustable, Integrated temperature compensation, Switching range adjustable via button or control line, Blind zone: 30 cm, Range: 300 cm

SKU

0662488804602
Manufacturer code

3080460
Length of sensor

45 mm
Ambient temperature

-40 - 70 °C
Supply voltage

10 - 30 V
Switching frequency

3 Hz
Diameter sensor

40 mm
Measuring range length

300 - 3000 mm
Type of electric connection

Plug-in connection
Type of switching output

PNP
Type of switch function

Normally open contact (NO)
Material active area of sensor

Plastic
Housing material

Plastic
Material of cable sheath

Polyvinyl chloride (PVC)
Connector gender

male
NO/NC

NO/NC contacts
Switching output

PNP/NPN

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
