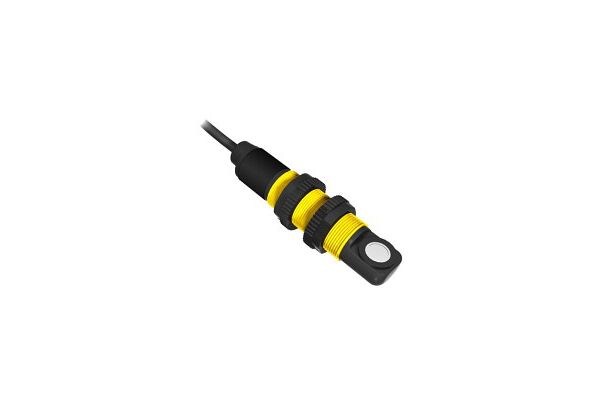

S18UBAR W/30 Ultrasonic Sensor, diffuse mode sensor, With Switching Output

S18UBAR W/30

Ultrasonic Sensor, diffuse mode sensor, With Switching Output, Operating voltage 10…30 VDC, Max. range 300 mm, Cable length 9 m, Compact design, Cable, 2 m, Temperature compensation, Very small blind zone, Switching range adjustable via teach-in, Adjustable to retroreflective mode, Blind zone: 3 cm, Range: 30 cm

  • SKU
    0662488027162
  • Manufacturer code
    3002716

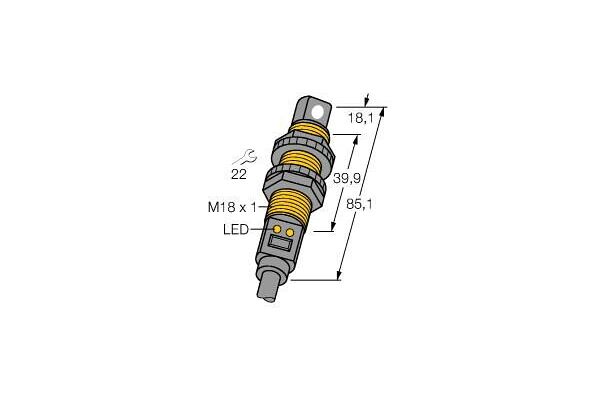

  • Length of sensor
    85.1 mm
  • Ambient temperature
    -20 - 60 °C
  • Supply voltage
    10 - 30 V
  • Switching frequency
    100 Hz
  • Diameter sensor
    18 mm
  • Measuring range length
    30 - 300 mm
  • No-load current
    100 mA
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Cable length (m)
    2
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-42538-9e628798089fb641515f72760c4e6f32.pdf (PDF, 213.36 kB)
